Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

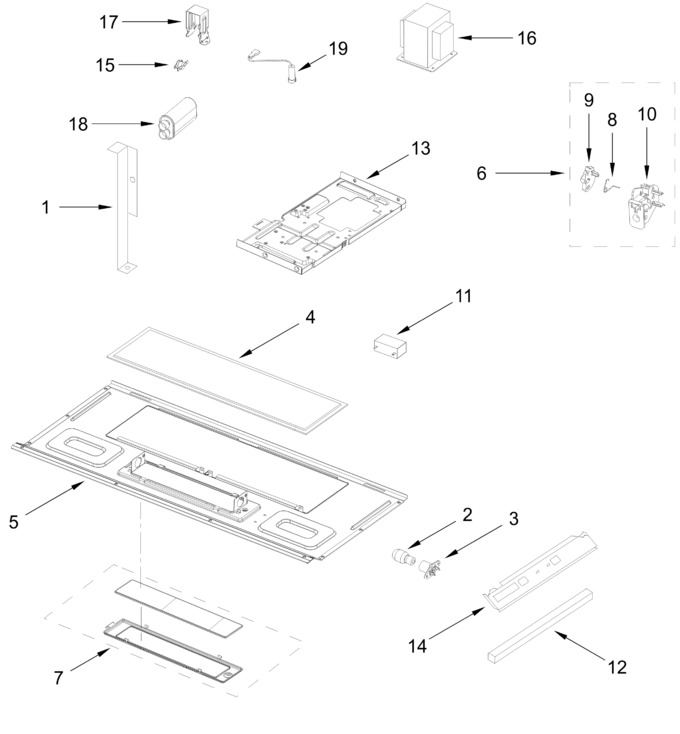

| 1 | W10313275 | Bracket, Top Cavity |
|
$ 30.53 | |||||
| 2 | 8206232A | Bulb, Lamp (Replaces: 8206232) |
|
Immediately | $ 6.61 | ||||
| 3 | W10210871 | Holder, Lamp |
|
Immediately | $ 5.75 | ||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 29.33 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 220.35 | |||||
| 6 | W11551558 | Interlock Assembly (includes Switches) (Replaces: W11433682) |
|
Immediately | $ 30.33 | ||||
| 7 | W10240330 | Lamp Glass And Holder Assembly |
|
$ 6.47 | |||||
| 8 | W10156812 | Spring, Interlock |
|
Immediately | $ 10.93 | ||||
| 9 | W10562613 | Plate, Cam |
|
Immediately | $ 16.05 | ||||
| 10 | WP8206419 | Support, Interlock (upper) (Replaces: 8206419) |
|
Immediately | $ 20.13 | ||||
| 11 | W11405832 | Capacitor, Hood Motor |
|
$ 24.52 | |||||
| 12 | W10571179 | Seal, Cooling |
|
- | |||||
| 13 | W11520831 | Chassis |
|
Immediately | $ 56.47 | ||||
| 14 | W11521327 | Support, Ntc |
|
$ 56.50 | |||||
| 15 | W10269232 | Thermostat, Cavity |
|
$ 63.67 | |||||
| 16 | W11759254 | Transformer, High Voltage (Replaces: W11739997) |
|
$ 98.96 | |||||
| 17 | W10532063 | Bracket, Capacitor |
|
$ 25.45 | |||||
| 18 | WPW10574736 | Capacitor, High Voltage (Replaces: W10574736) |
|
$ 153.53 | |||||
| 19 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| WPW10156813 | Support, Interlock (lower) (Replaces: W10156813) |
|
Immediately | $ 7.26 |
