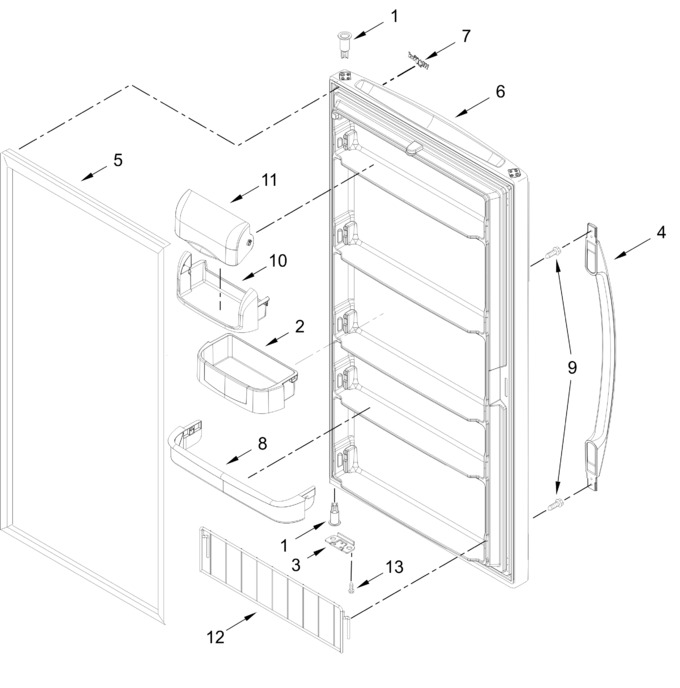

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 66.20 | ||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | W10803532 | Handle, Door (stainless) (Replaces: W10635689) |
|
Immediately | $ 201.83 | ||||
| 5 | W11661568 | Gasket, Door (grey) (Replaces: W10574476) |
|
Immediately | $ 220.12 | ||||
| 6 | W10746794 | Door Assembly (stainless) (Replaces: W10578907) |
|
$ 1,351.58 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 89.82 | ||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 10 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 75.44 | ||||
| 11 | W10612074 | Lid |
|
$ 100.95 | |||||
| 12 | W10574673 | Shelf, Door (pizza) |
|
$ 206.69 | |||||
| 13 | 7101P35660 | Screw |
|
- | |||||
| WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 65.73 |
