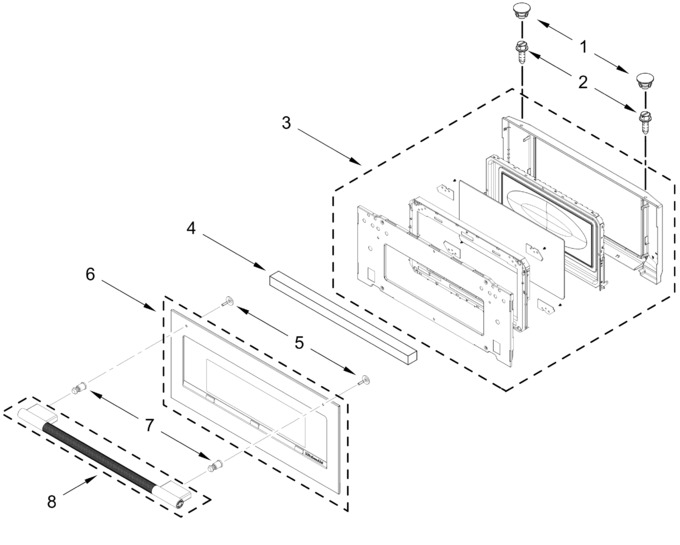

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | 7101P33860 | Screw |
|
- | |||||
| 3 | W11684570 | Inner Door Assembly (Replaces: W11639555) |
|
Immediately | $ 508.92 | ||||
| 4 | W10359769 | Foam, Door Handle |
|
$ 12.65 | |||||
| 5 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 12.65 | ||||
| 6 | W11795874 | Mwo Outer Door Assembly (black Ore) (Replaces: W11710549) |
|
- | |||||
| 7 | W11773159 | Stud (Replaces: W11687274) |
|
$ 25.60 | |||||
| 8 | W11783624 | Handle (black Ore) (Replaces: W11680263) |
|
- |
