SELECT A DIAGRAM

Diagram for 01 - Cover
01 - Cover

Diagram for 02 - Cabinet Front And Wrapper
02 - Cabinet Front And Wrapper

Diagram for 03 - Control Parts
03 - Control Parts

Diagram for 04 - Air Handling Parts
04 - Air Handling Parts

Diagram for 05 - Compressor Parts
05 - Compressor Parts

Diagram for 06 - Window Mounting Parts
06 - Window Mounting Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309622004 Wrapper-u-bend Sl/c Appelez-nous -
2 5303317604 Grille,rear Appelez-nous -
7 5304414855 Link Appelez-nous -
8 309622204 Louver-horizontal 1403 Appelez-nous -
9 309622103 Louver-vert 1403 Appelez-nous -
10 309622104 Louver-vert/handle 1403 Appelez-nous -
12 309622304 +filter-air Frnt Sl/c Fac 1403 Special Order $ 53.50

17 309622404 Frnt Assy-sl/c Fac Brcln 1403 Special Order $ 117.71

19 309622609 Plate-dial Sl/c Fac 1403 Appelez-nous -
20 309307011 Knob-control(1403;w/6502) Appelez-nous -
39 3015312 Screw, 8-18 X 0.47 Appelez-nous -
43 309621804 Frame-front Ncs1403-g96y Appelez-nous -
*73520 309622504 Louver-horiz Assy 1403 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

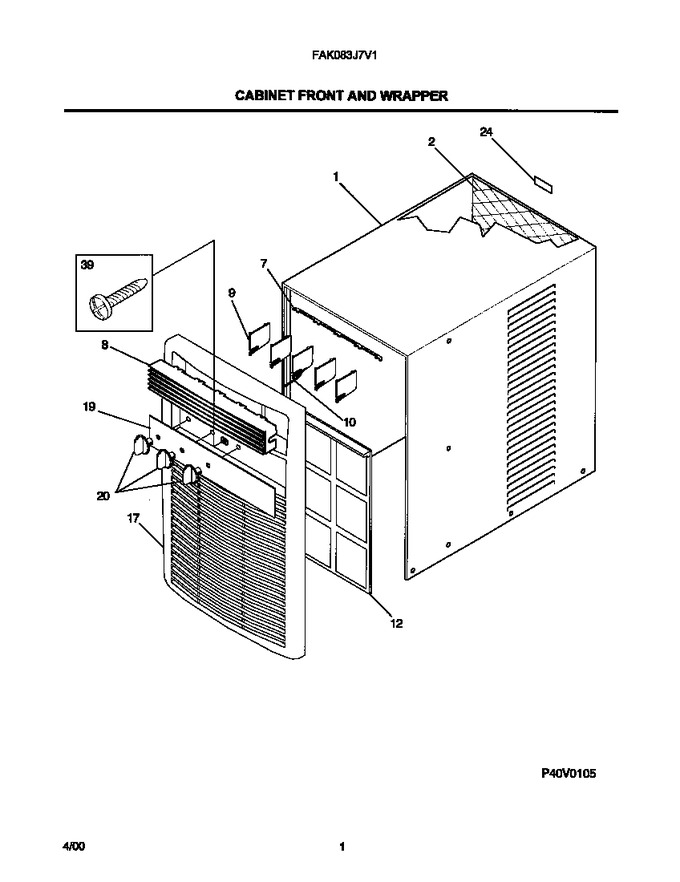

Diagram for FAK083J7V1
