Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304406829 Compressor Special Order $ 620.31

2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 3200282 Gasket-terminal Cover Appelez-nous -
7 3200281 Cover,compr Terminal Appelez-nous -
9 5303211017 Nut,terminal Cover ,compressor Elec Appelez-nous -
13 309624101 Tray-evaporator Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -
23 309627602 Base,compressor Mt. Appelez-nous -
F10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

F11 309617003 Evaporator Appelez-nous -
F12 309617203 Condenser Appelez-nous -
F16 5303303064 Capillary Tube,30 Inch Long Appelez-nous -
F17 5300265301 Drier-filter,service Kit Special Order $ 284.30

F8 3202920 Overload Protector Appelez-nous -
NI 309112501 Washer,metallic Appelez-nous -

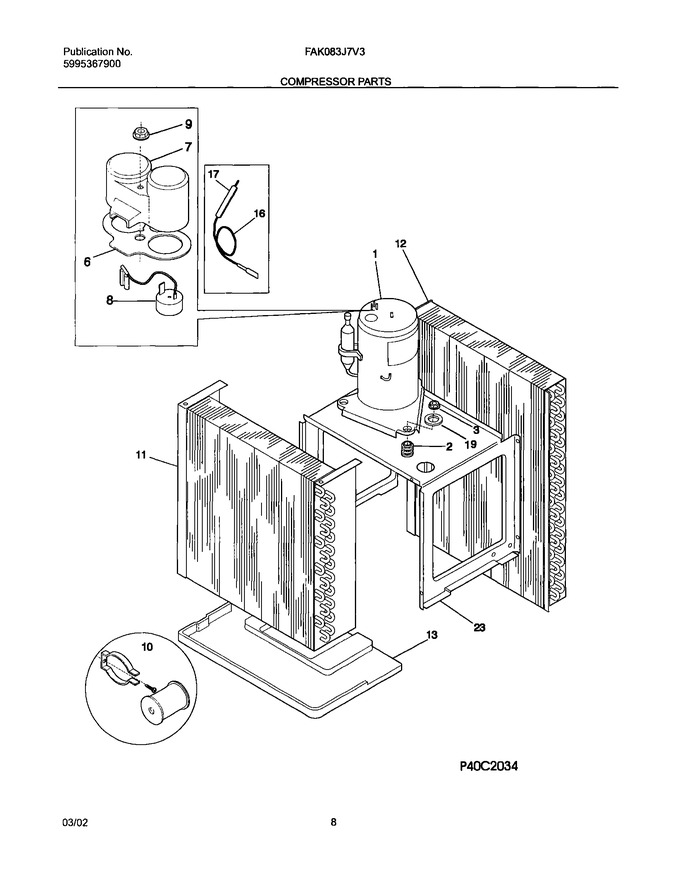

    View Diagram in Separate Window     Print Icon   Print Part List
