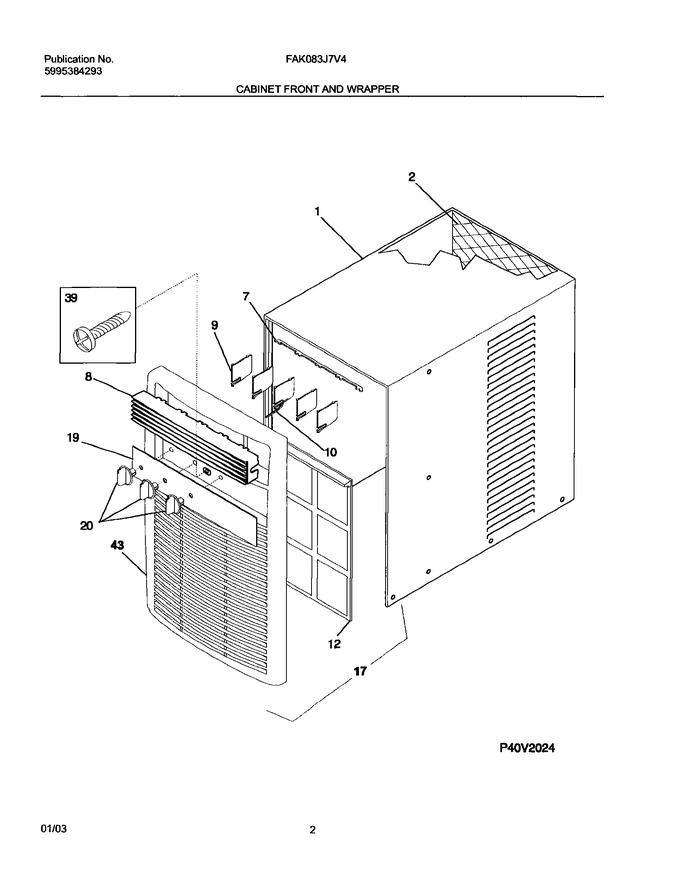

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309622004		Cabinet,sleeve		Appelez-nous	-
2	5303317604		Grille,rear		Appelez-nous	-
7	5304414087		Link-vertical Louver		Appelez-nous	-
8	309622504		Louver Assy,incl-7,8,9,10		Appelez-nous	-
8	309622204		Louver Horizontal		Appelez-nous	-
9	309622103		Louver,vertical		Appelez-nous	-
10	309622104		Louver,vertical ,w/handle		Appelez-nous	-
12	309622304		Filter Air Front				$ 53.50
17	309622404		Front Assy,complete ,7,8,9,10,12,43				$ 117.71
19	309622609		Dial Plate		Appelez-nous	-
20	309307013		Knob-control		Appelez-nous	-
39	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
43	309621804		Frame,cabinet Front		Appelez-nous	-
NI	309369929		Energy Guide,fak083j7v4		Appelez-nous	-
