Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304414964 +compressor-sanyo 806 Appelez-nous -
2 5303015945 Grommet Compressor (3) Appelez-nous -
3 5303015946 Nut,plastic ,compressor ,(3) Appelez-nous -
6 3200282 Gasket-cover Appelez-nous -
7 3200281 Cover-terminal Appelez-nous -
8 5303203064 Overload Asm-mra 98623-443 Appelez-nous -
9 5303211017 Nut-cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309617007 Evaporator Appelez-nous -
12 309617307 Condenser Appelez-nous -
13 309624101 Tray-evaporator Appelez-nous -
16 5303289577 Capillary Tube,cut-to-size Appelez-nous -
22 5303313964 Seal,condenser ,upper Appelez-nous -
23 309614105 Base,compressor Appelez-nous -
*85201 309627602 Base Sl/c (ncs1403-g96y) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

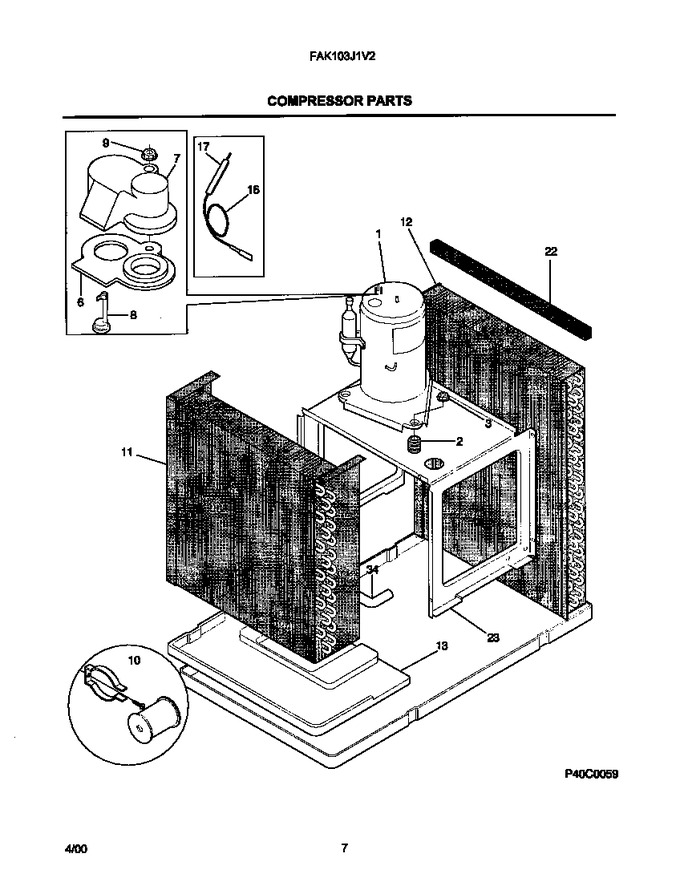

Diagram for FAK103J1V2
