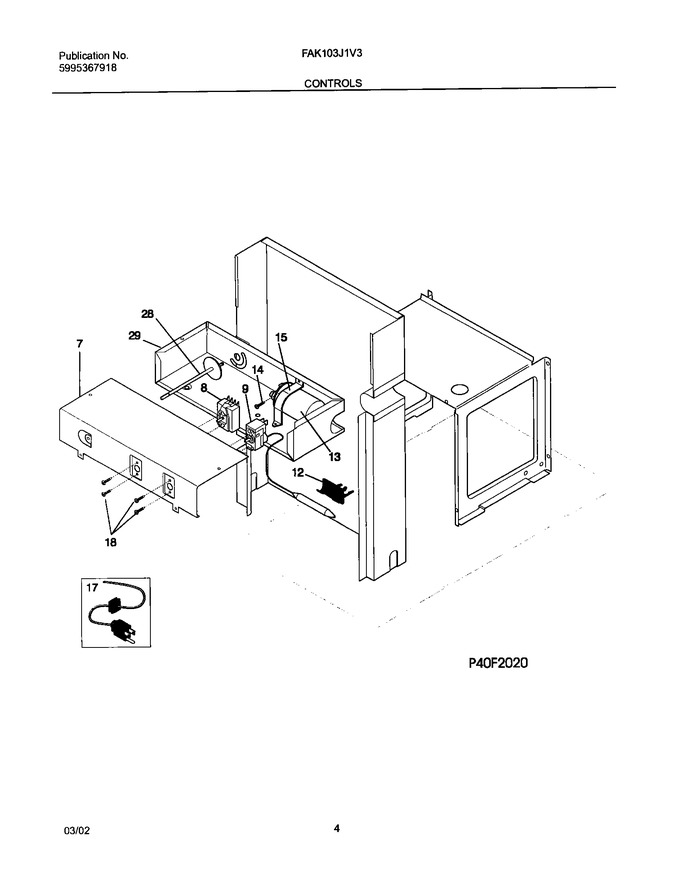

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309606501		Panel-mounting,controls		Appelez-nous	-
12	309321201		Clip,temp Sensor Mtg ,thermostat		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,ground		Appelez-nous	-
15	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
28	309625301		Door Opener,vent Mechanism		Appelez-nous	-
29	309606402		Control Box		Appelez-nous	-
F13	5304416302		Capacitor,370 V ,40+15 Uf		Appelez-nous	-
F17	309343105		Cord-electric Power,type A ,16 Awg		Appelez-nous	-
F8	5303323284		Switch,selector ,7 Posn,3 Speed		Appelez-nous	-
F9	5304409252		Control Temperature				$ 182.12
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
