Basket And Tub Parts
Controls And Water Inlet Parts
Gearcase, Motor And Pump Parts
Meter Case Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

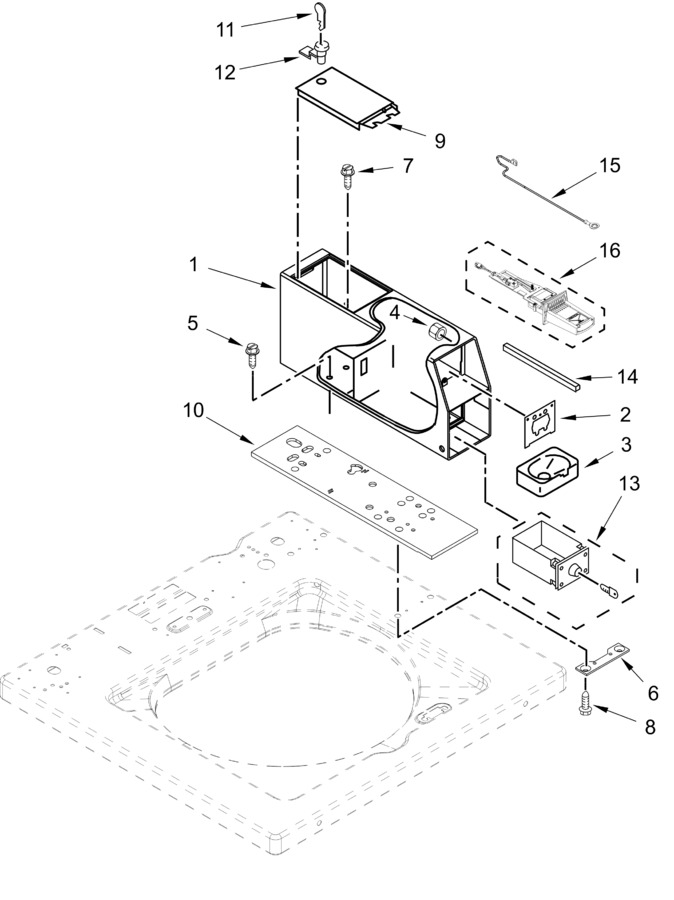

| 1 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 2 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 3 | W10133509 | Funnel, Coin |
|
$ 74.49 | |||||
| 4 | W10139060 | Nut, 1/4-20 |
|
- | |||||
| 5 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 6 | 3347825 | Plate, Mounting |
|
- | |||||
| 7 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 8 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 9 | W11283272 | Assembly, Service Door (Replaces: W11269277) |
|
$ 95.29 | |||||
| 10 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 11 | WPW10114740 | 777 Lock And Key, Complete (Replaces: W10114740) |
|
$ 117.85 | |||||
| 12 | W11315637 | 777 Lock And Key, Complete (Replaces: W11113382) |
|
Immediately | $ 36.42 | ||||
| 13 | W11190039 | Money Box With Lock (Replaces: W10860203) |
|
Immediately | $ 160.25 | ||||
| 14 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8576635) |
|
Immediately | $ 67.13 | ||||
| 15 | W10846503 | Jumper-ground, Coin Mechanism (Replaces: W10623854) |
|
$ 16.77 | |||||
| 16 | W11815416 | Coin Slide , Vertical 8 (complete) (Replaces: W11759328) |
|
- |
