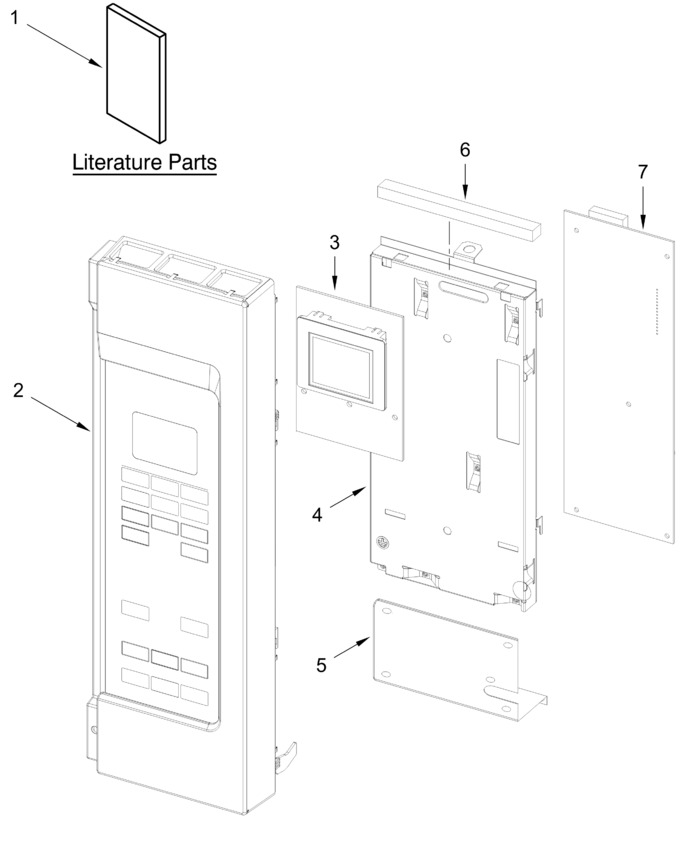

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11717783 | Control Panel Assembly (stainless) |
|
$ 205.00 | |||||
| 3 | W11755204 | User Interface (Replaces: W11679748) |
|
- | |||||
| 4 | W11753212 | Bracket, Control (Replaces: W11698816) |
|
- | |||||
| 5 | W11752396 | Backer, Lower (Replaces: W11730731) |
|
- | |||||
| 6 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 7 | W11752393 | Appliance Control Unit (Replaces: W11672150) |
|
$ 178.77 | |||||
| W11698718 | Manual, Owner's |
|
- | ||||||
| W11709344 | Guide, Quick Reference |
|
- | ||||||
| W11709342 | Sheet, Tech |
|
- |
