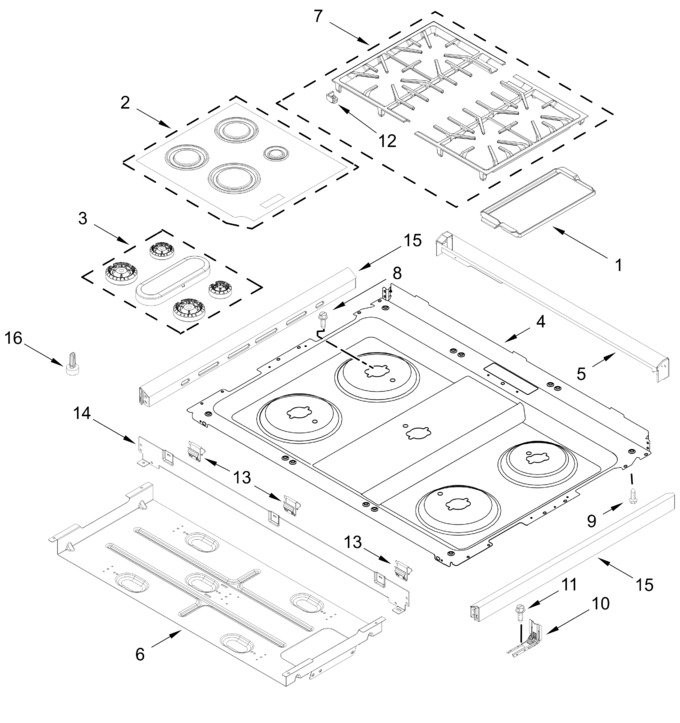

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730472 | Griddle (Replaces: W11601635) |
|
$ 224.30 | |||||
| 2 | W11747335 | Burner, Cap Kit (black) (Replaces: W11636608) |
|
- | |||||
| 3 | W11728823 | Burner Kit (Replaces: W11635708) |
|
$ 180.92 | |||||
| 4 | W11730423 | Cooktop (black) (Replaces: W11279786) |
|
$ 332.69 | |||||
| 5 | W11747659 | Vent, Trim (Replaces: W11632438) |
|
$ 202.83 | |||||
| 6 | W11758685 | Box, Burner (Replaces: W11388381) |
|
$ 341.19 | |||||
| 7 | W11729009 | Grate Kit (black) (Replaces: W11601432) |
|
$ 358.47 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 10 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 24.19 | ||||
| 11 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| 12 | W11729100 | Grate, Bumper (Replaces: W11672010) |
|
$ 13.71 | |||||
| 13 | W11728827 | Spring, Clip (Replaces: W11637551) |
|
- | |||||
| 14 | W11750421 | Cooktop, Front Bracket (Replaces: W11736687) |
|
- | |||||
| 15 | W11729931 | Cooktop, Frame Bracket (black) (Replaces: W11367962) |
|
$ 171.56 | |||||
| 16 | 8016P02260 | Glide, Main Top |
|
- | |||||
| W11730272 | Harness, Bake (Replaces: W11454086) |
|
Immediately | $ 59.10 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11770982 | Harness, Main (Replaces: W11669851) |
|
- | ||||||
| W11771002 | Harness, Dc (Replaces: W11671200) |
|
$ 177.07 | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| 3196896 | Clip, Wire |
|
- |
