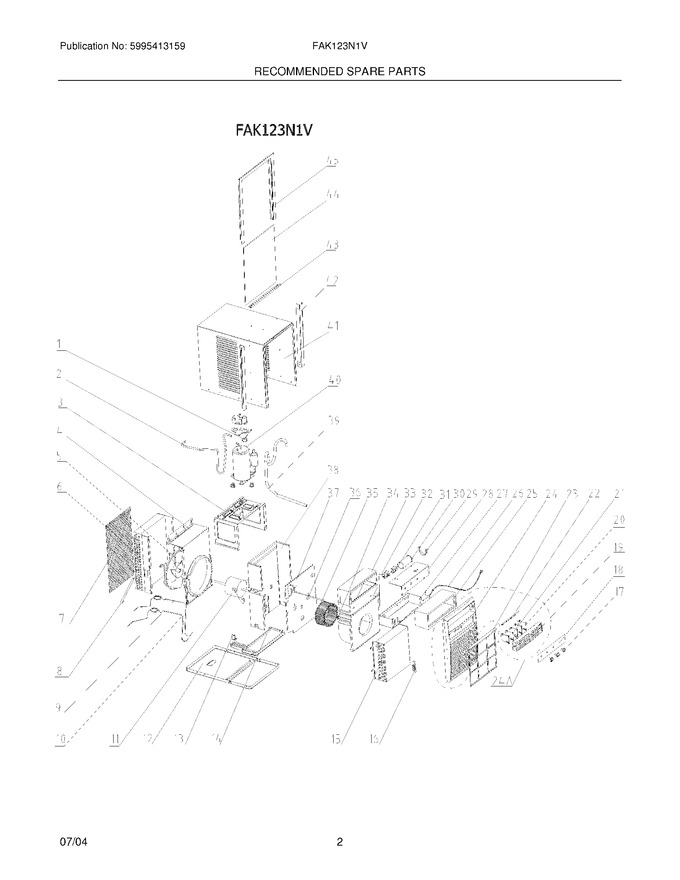

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	309614106		Base,compressor Mtg. ,with Studs		Appelez-nous	-
4	309642301		Housing,fan Shroud		Appelez-nous	-
7	5303317604		Grille,rear		Appelez-nous	-
12	309621003		Base,casement Unit ,with Seal		Appelez-nous	-
13	309102701		Bracket,condenser/base		Appelez-nous	-
14	309624101		Tray,evaporator Drip		Appelez-nous	-
16	309321201		Clip,temp Sensor Mtg ,thermostat		Appelez-nous	-
17	309307013		Knob-control		Appelez-nous	-
18	309622609		Dial Plate		Appelez-nous	-
19	309622204		Louver Horizontal		Appelez-nous	-
20	309622103		Louver,vertical		Appelez-nous	-
21	309622104		Louver,vertical ,w/handle		Appelez-nous	-
22	5303303089		Link-louver		Appelez-nous	-
23	309622304		Filter Air Front				$ 53.50
24	309621804		Frame,cabinet Front		Appelez-nous	-
25	309624901		Adapter,scroll/housing ,front		Appelez-nous	-
26	309343106		Cord-electric Power,type A ,14 Awg		Appelez-nous	-
27	309606402		Control Box		Appelez-nous	-
28	309606501		Panel,control Mount		Appelez-nous	-
29	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
33	309624801		Housing,blower Scroll		Appelez-nous	-
34	309112101		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
36	309625301		Door Opener,vent Mechanism		Appelez-nous	-
37	309624601		Plate,scroll/housing ,back		Appelez-nous	-
38	309615202		Partition,shroud/scroll ,galv-steel		Appelez-nous	-
41	309622004		Cabinet,wrapper/sleeve		Appelez-nous	-
42	309305302		Channel,slide ,side Mt. ,(2)				$ 45.68
43	5304414112		Retainer,window Panel		Appelez-nous	-
44	309335102		Panel,window ,19.02 X 15.15 ,plastic ,translucent,corrugated		Appelez-nous	-
45	5304414118		Frame,expander ,sliding		Appelez-nous	-
24A	309622404		Front Assy,complete				$ 117.71
F1	5304419795		Overload Protector		Appelez-nous	-
F10	309365901		Tube,capillary ,bottom		Appelez-nous	-
F11	309646001		Motor,fan				$ 278.20
F15	309617007		Evaporator		Appelez-nous	-
F2	309365601		Tube,discharge ,formed		Appelez-nous	-
F30	5304426452		Capacitor,250 V ,50+15 Mfd		Appelez-nous	-
F31	5303323284		Switch,selector ,7 Posn,3 Speed		Appelez-nous	-
F32	5303321674		Control-temperature				$ 144.59
F35	309625201		Blower Wheel,plastic				$ 50.05
F39	309365701		Tube,suction ,formed		Appelez-nous	-
F40	309260701		Compressor		Appelez-nous	-
F5	309626001		Fan Blade,condenser				$ 54.71
F6	309617207		Condenser		Appelez-nous	-
F8	5304417604		Tube,process ,cond. Outlet		Appelez-nous	-
F9	309365801		Tube,capillary ,top		Appelez-nous	-
