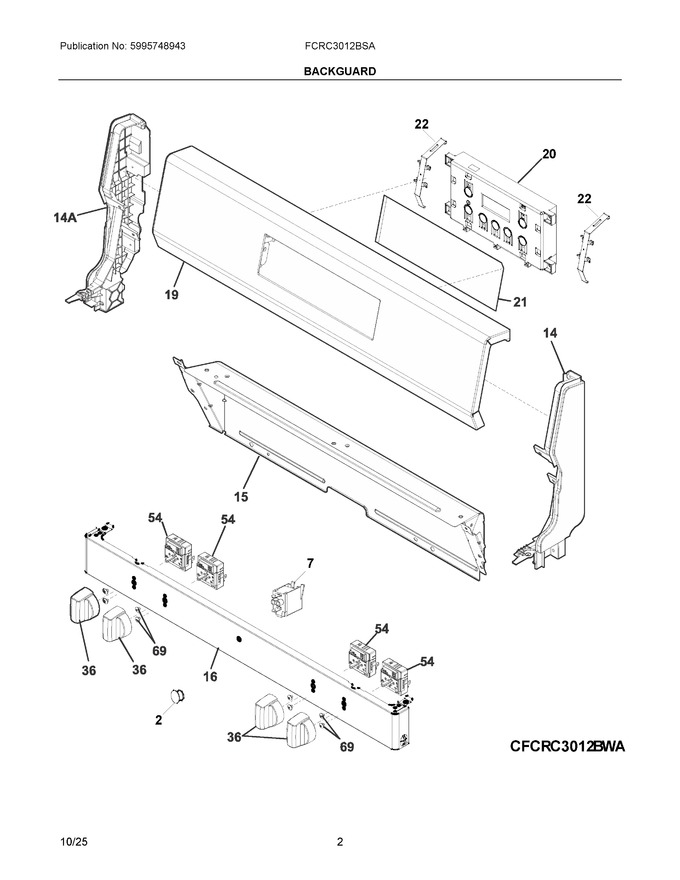

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318044511		Lens, Indicator Light			Immediately	$ 25.66
7	318369501		Lamp, Indicator			Immediately	$ 67.62
14	140283307068		Cap, Control Panel, Rh   (Replaces: 140283307027)			Immediately	$ 32.99
15	140270581014		Shield, Backguard, Inner		Appelez-nous	-
16	140209313406		Panel, Manifold, Stainless		Appelez-nous	-
19	5304526454		Control Panel, Assembly, Steel/glass, Stainless/black, W/cntl Bracket				$ 98.63
20	5304536331		Controller, Electronic, Squonge			Immediately	$ 104.75
21	5304534804		Overlay, Control, Black				$ 12.90
22	140281846018		Bracket, User Interface		Appelez-nous	-
36	5304526249		Knob, Infinite Switch, Black, Single			Immediately	$ 16.25
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.32
14A	140283307050		Cap, Control Panel, Lh   (Replaces: 140283307019)			Immediately	$ 31.28
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	140204087039		Wiring Harness, Infinite Switch		Appelez-nous	-
