SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram

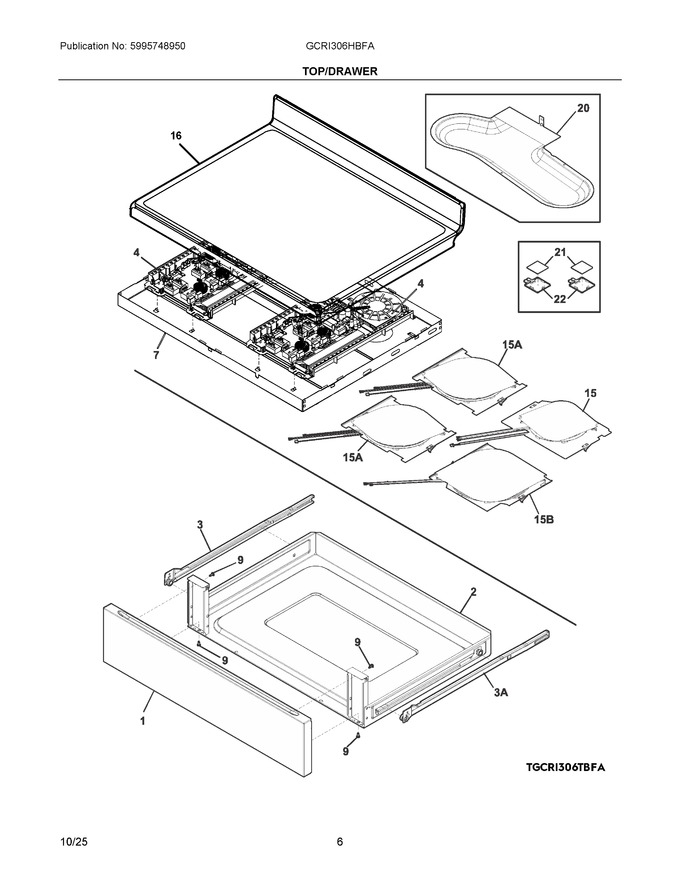

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526303		Panel, Drawer, Ez Care Stnless, Outer				$ 112.31
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	140115391686		Control Module, Induction, King Tiger			Immediately	$ 160.35
7	140172174066		Box, Induction		Appelez-nous	-
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304537475		Clip-cooktop Alignment		Appelez-nous	-
12	5304534653		Clip, Support, Burner Box				$ 9.71
15	387404760		Element Assembly, Induction Coil, 140mm			Immediately	$ 86.82
16	140166975197		Panel, Smoothtop, Black				$ 257.81
20	5304528601		Duct, Air Intake, Induction		Appelez-nous	-
21	357252801		Shielding, Ferrite Bar		Appelez-nous	-
22	5304533467		Bracket, Ferrite Shield		Appelez-nous	-
15A	387404870		Element Assembly, Induction Coil, 180mm			Immediately	$ 84.96
15B	387761249		Element Assembly, Induction Coil, 210mm			Immediately	$ 106.18
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	140174412142		Wiring Harness, Induction, Cooktop Power		Appelez-nous	-
NI	5304533468		Harness, Wiring, Ferrite Ground				$ 26.75
NI	5304533452		Harness, Wiring, Cooktop, Power				$ 79.59
NI	140207068028		Harness, Wiring, Communication, Cooktop		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
