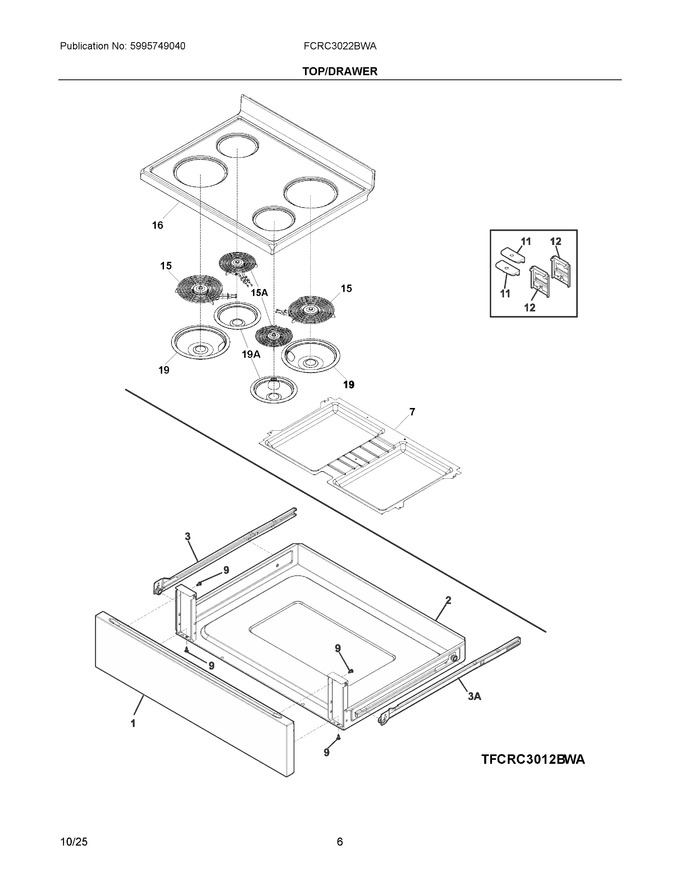

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526301		Panel, Drawer, White, Outer			Immediately	$ 84.68
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304533456		Screw, T15 Self Tap, 3.5 X 8, Element Bracket				$ 3.50
11	5304537475		Clip-cooktop Alignment		Appelez-nous	-
12	5304534653		Clip, Support, Burner Box				$ 9.71
15	140131974036		Element, Top Coil, 8", 2400		Appelez-nous	-
16	8583166100690		Panel, Smoothtop, White		Appelez-nous	-
19	140293951012		Pan, Surface Element, 8		Appelez-nous	-
15A	140131974044		Element, Top Coil, 6", 1500w		Appelez-nous	-
19A	140293951020		Pan, Surface Element, 6		Appelez-nous	-
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	140204086031		Wiring Harness, Top Power		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	140204086049		Wiring Harness, Top Power 2+2		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
