SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Microwave Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram

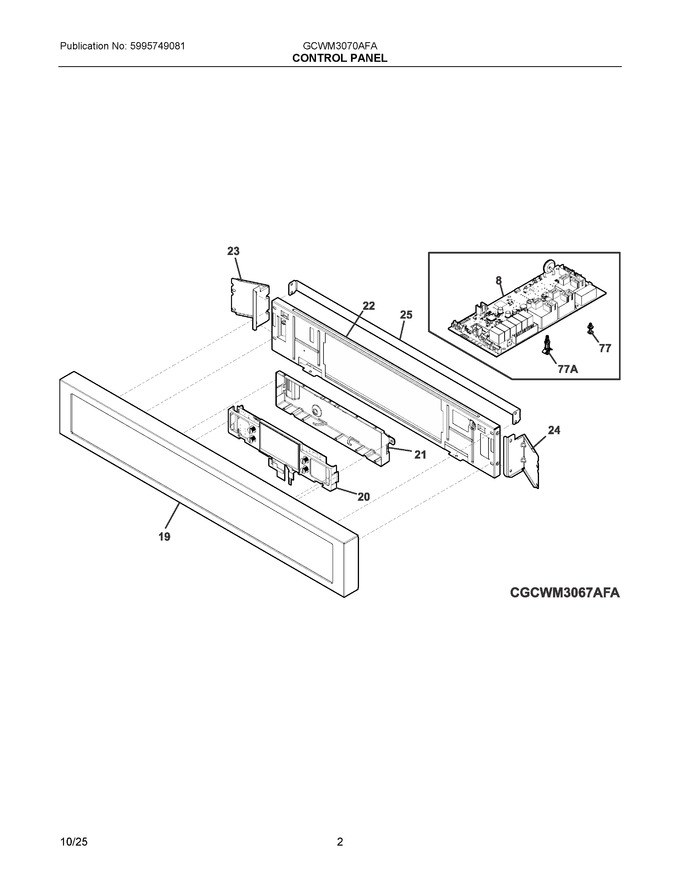

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477080		Board Ovc, Microwave, Ariane				$ 135.75
19	5304530380		Control Panel, Assembly, Steel/glass, Stainless-black			Immediately	$ 141.06
20	140225820228		Controller, Electronic, Ui720m				$ 207.58
21	5304523582		Housing, Controller			Immediately	$ 34.13
22	A16358901		Bracket, Support, Control Panel				$ 80.59
23	5304530392		Bracket, Control Panel, Lh				$ 17.50
24	5304530393		Bracket, Control Panel, Rh				$ 17.50
25	5304535440		Bracket-control Panel Emc 30				$ 9.28
77	5304530451		Spacer, Standoff, Ovc		Appelez-nous	-
22A	5304526426		Bracket-support Control Pux		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 41.91
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 14.51
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 110.93

    View Diagram in Separate Window       Print Part List
