SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram

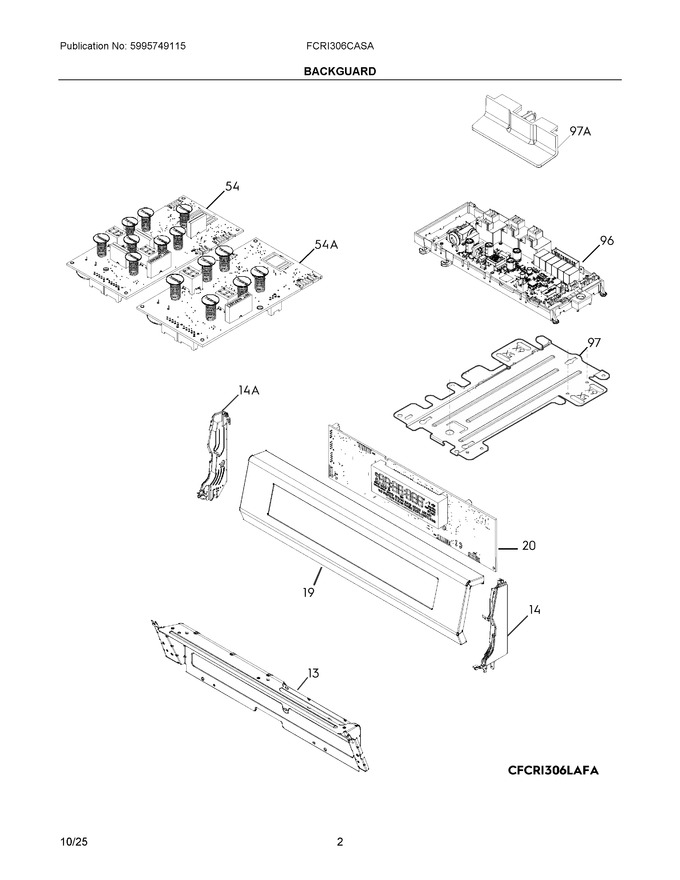

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	140270581014		Shield, Backguard, Inner		Appelez-nous	-
14	140283307068		Cap, Control Panel, Rh   (Replaces: 140283307027)			Immediately	$ 32.99
19	140288183027		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225819287		Controller, Electronic, Ui405i, Oven		Appelez-nous	-
54	140200944035		Control, Induction Units, Lh		Appelez-nous	-
96	140202480038		Pc Board, Ovc			Immediately	$ 134.88
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	140283307050		Cap, Control Panel, Lh   (Replaces: 140283307019)			Immediately	$ 31.28
54A	5304534655		Control, Induction Units, Rh Side			Immediately	$ 139.24
97A	140280237011		Housing, Ovc Board		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	140200603102		Wiring Harness, Macs, Communication		Appelez-nous	-
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
