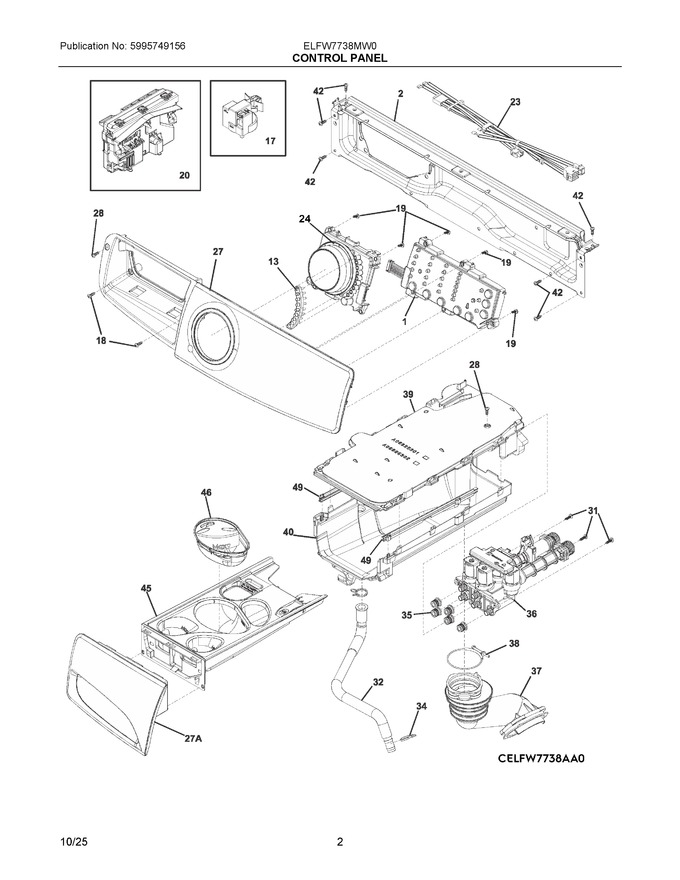

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537902		Ui Satellite, Board Assembly				$ 130.44
2	5304505086		Bracket, Control Panel				$ 70.85
13	5304529751		Diffuser, Light				$ 15.18
17	5304505436		Sensor Switch, Pressure			Immediately	$ 51.64
20	5304537934		Main Board, Assembly				$ 143.48
23	5304522537		Harness, Wiring Main, W/drum Light			Immediately	$ 202.85
24	140203381110		Knob Assembly, Washer		Appelez-nous	-
27	5304537900		Overlay, Control Panel		Appelez-nous	-
32	134625500		Hose, Disp-to-bellows				$ 87.17
35	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
36	5304537938		Valve, Vortex				$ 141.36
38	134372400		Clamp, Tub Hose				$ 64.49
39	5304537814		Housing, Assembly, Conveyor			Immediately	$ 54.77
40	5304514782		Housing, Dispenser, Lower			Immediately	$ 64.34
45	5304537939		Drawer Assembly, Dispenser				$ 90.67
46	5304514801		Cup Assembly, Dispenser, Liquid, W/cover			Immediately	$ 91.09
49	5304514781		Slider, Drawer, Dispenser			Immediately	$ 84.59
27A	5304537937		Handle Assembly, White			Immediately	$ 112.28
NI	5304514820		Screw, Quad, #8-18 X .625				$ 2.89
NI	5304528020		Cable Tie, Push Mount				$ 9.41
NI	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
NI	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
NIA	134407900		Dampener, Vibration				$ 17.01
NIA	134178901		Screw, 8-18ab X 0.455				$ 14.89
NIA	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NIA	5304510114		Cable, Grounding, To Cabinet, Main Board				$ 17.78
NIA	5304529693		Gasket, Console				$ 9.50

    View Diagram in Separate Window       Print Part List
