SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

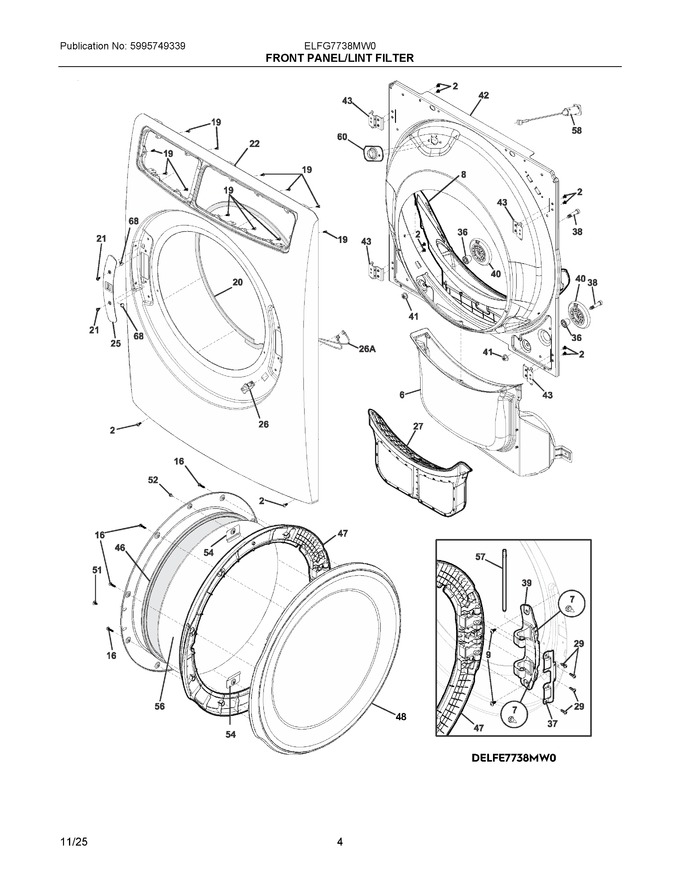

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
6	5304521401		Duct Assembly, Air, W/foam Top Seal			Immediately	$ 148.92
7	137285100		Screw, Pan Head, #8-18x.750				$ 17.53
8	5304529758		Grill Assembly, Lint, W/moisture Sens			Immediately	$ 101.93
9	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
20	5304505111		Gasket, Foam, Front Panel				$ 81.91
21	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
22	140062728153		Front Panel, White		Appelez-nous	-
25	5304513568		Latch Assembly, Door, W/cover			Immediately	$ 28.43
26	134813663		Switch, Door, White			Immediately	$ 60.78
27	140201067026		Filter Assembly, Lint, Clamshell			Immediately	$ 78.91
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
36	5304523154		Spacer, Drum Roller			Immediately	$ 26.76
37	5304529788		Bracket, Hinge			Immediately	$ 138.80
38	5304529714		Shaft, Drum Roller, Shoulder Bolt			Immediately	$ 30.42
39	5304535750		Hinge Assembly, Nest			Immediately	$ 106.07
40	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 30.31
41	5304523153		Nut, Lock			Immediately	$ 10.94
42	5304521387		Bulkhead, Front, White				$ 188.59
43	5304505118		Bracket, Bulkhead, (4)				$ 14.46
45	5304538706		Gasket, Door Seal, Inner			Immediately	$ 20.38
47	5304529789		Frame, Inner Door				$ 119.29
48	5304538129		Frame Assembly, Door, External, W/full Lens			Immediately	$ 133.76
51	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
54	5304505012		Clamp, Door Glass, (2)			Immediately	$ 18.79
56	5304504999		Glass, Dryer Door, Black			Immediately	$ 167.09
57	5304529871		Pin, Hinge			Immediately	$ 30.37
58	5304521399		Lamp Assembly, Drum, W/harness				$ 98.08
60	5304521476		Bracket, Support, Drum Lamp				$ 18.79
68	134742000		Plug, Hinge Hole, White				$ 10.85
26A	5304505258		Harness, Wiring, Door Switch				$ 44.39
NI	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	5304515364		Harness, Wiring, Moisture Sens				$ 34.07

    View Diagram in Separate Window       Print Part List
