Diagram for Burner Box, Griddle, And Grill Parts
Burner Box, Griddle, And Grill Parts

Diagram for Cooktop, Burner, Griddle, And Grill Parts
Cooktop, Burner, Griddle, And Grill Parts

No Diagram Image Available
Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 305.59

2 W11337062 Orifice Holder Assembly   (Replaces: W10892771) In-Stock Immediately $ 105.32

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 54.87

4 W11580024 Igniter   (Replaces: W11238758) In-Stock Immediately $ 19.25

5 W11515370 Grate Assembly (black, Set Of 2)   (Replaces: W11291176) Special Order $ 326.27

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 10.77

7 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 10.94

8 W10674068 Screw Special Order $ 20.91

9 W10116114 Light, Indicator Housing In-Stock Immediately $ 80.20

10 W10294500 Lens, Indicator Light Special Order $ 6.59

11 W11316873 Bezel (brass)   (Replaces: W11090283) In-Stock Immediately $ 36.85

12 W11317495 Bezel, Griddle (brass)   (Replaces: W11104966) Special Order $ 41.57

13 W11328971 Cap, Burner (black, Set Of 4)   (Replaces: W11121391) Special Order $ 142.65

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 205.25

15 W11620693 Knob, Griddle (stainless)   (Replaces: W11496089) Appelez-nous -
16 W11515378 Grill Grate Assembly   (Replaces: W11291177) Appelez-nous -
17 W11328566 Grill Box Assembly   (Replaces: W11174429) Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 430.29

19 W11316701 Panel, Center Cooktop   (Replaces: W11038241) Special Order $ 430.29

20 W11791685 Knob, Grill (stainless)   (Replaces: W11560134) Appelez-nous -
21 W11355761 Trim, Island Appelez-nous -
22 W11509770 Screw   (Replaces: W11328357) Special Order $ 12.20

23 W11634750 Panel, Console   (Replaces: W10878267) Appelez-nous -
24 W11785279 Knob, Burner (stainless)   (Replaces: W11560125) Special Order $ 44.99

25 W11602621 Griddle Module Assembly   (Replaces: W10891745) In-Stock Immediately $ 1,276.19

26 W11328568 Grill Burner Assembly   (Replaces: W11120976) Special Order $ 665.60

27 W11640240 Grill Orifice Holder Assembly   (Replaces: W11419279) Appelez-nous -
28 7101P42660 Screw Appelez-nous -
29 W10291193 Trim, L-strip Appelez-nous -
30 W11328571 Electrode, Grill   (Replaces: W11174598) Appelez-nous -
31 W11419282 Orifice, Grill (18k) Appelez-nous -
32 W11700312 Badge (stainless)   (Replaces: W11238658) In-Stock Immediately $ 99.89

33 7101P33860 Screw Appelez-nous -
34 7101P30960 Screw Appelez-nous -
W11337065 Orifice Holder Assembly   (Replaces: W10892772) Special Order $ 105.58

ARIF51CD619278F411F0D01263DCFA5380D (assembly Breakdown Shown On Burner Box Page) Appelez-nous -
W11337063 Orifice Holder Assembly   (Replaces: W10892486) In-Stock Immediately $ 105.35

W10892429 Orifice, Simmer (2.0k) Special Order $ 83.52

W10892440 Orifice, Main (7.2k) Special Order $ 83.52

W11238756 Igniter In-Stock Immediately $ 58.25

ARI24AF0AF28B4085468927C2336952C26F (left Front And Right Center Front) Appelez-nous -
W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 66.73

ARI86CC442F7E3B2AFAEE580E427DF61ED9 (all But Right Center Rear) Appelez-nous -
ARI96BA0D36FA6A631E80C7BFCE86BF12CD (left Center) Appelez-nous -
ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI2DF9F568FCE4D6018097574F1022E13B (right Center Rear) Appelez-nous -
W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 188.61


    View Diagram in Separate Window     Print Icon   Print Part List

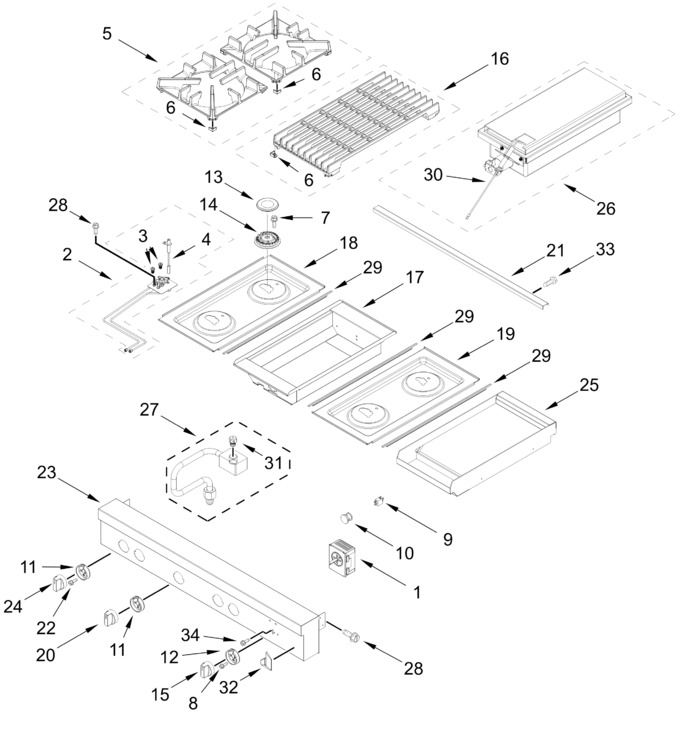

Diagram for JGCP748HL02
