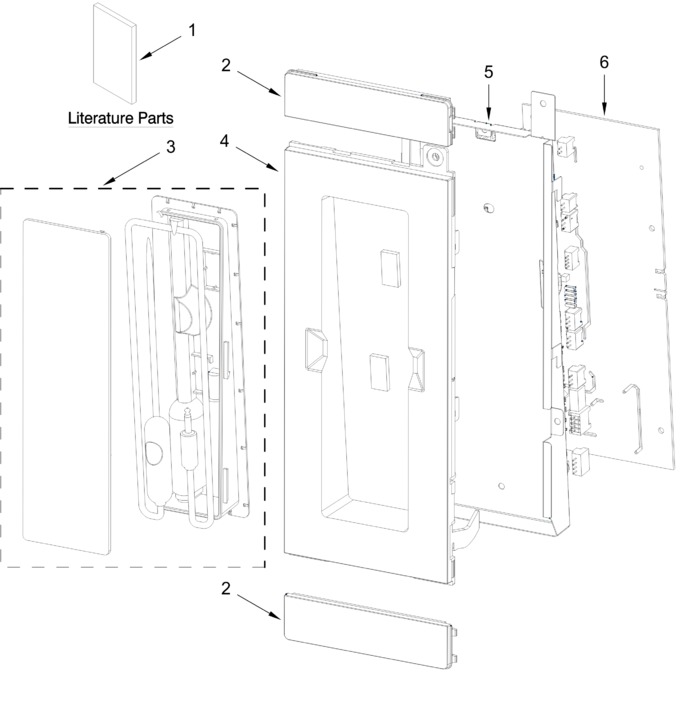

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11778504 | Cover, Console (Replaces: W11777277) |
|
- | |||||
| 3 | W11778502 | Box, Meat Probe (Replaces: W11777276) |
|
- | |||||
| 4 | W11777278 | Panel, Probe Console |
|
- | |||||
| 5 | W11707269 | Backer, Control (Replaces: W11604278) |
|
Immediately | $ 45.36 | ||||
| 6 | W11778506 | Appliance Control Unit (Replaces: W11724851) |
|
- | |||||
| W11739863 | Guide, Quick Reference |
|
- | ||||||
| W11759803 | Sheet, Tech |
|
- | ||||||
| W11739860 | Manual, Owner's |
|
- |
