Air Flow Parts


Cabinet And Installation Parts


Control Panel Parts


Door Parts


Interior And Ventilation Parts


Turntable Parts

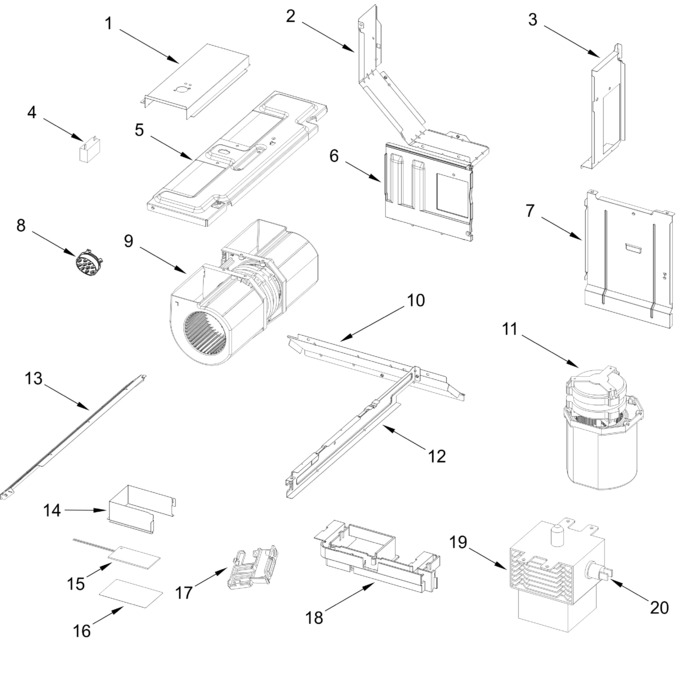

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11095818		Outlet, Cavity (back)				$ 148.58
2	W11095827		Air Deflector, Right		Appelez-nous	-
3	W11095824		Outlet Deflector, Right				$ 67.51
4	W11405832		Capacitor, Hood Motor				$ 24.52
5	W11086272		Chassis, Fan		Appelez-nous	-
6	W11745059		Deflector, Cooling Fan   (Replaces: W11667396)		Appelez-nous	-
7	W11095804		Hood Deflector, Right		Appelez-nous	-
8	W10557536		Sensor, Humidity				$ 109.12
9	W11712433		Motor, Hood (300 Cfm)   (Replaces: W11409092)			Immediately	$ 179.28
10	W11096432		Hood Deflector, Back		Appelez-nous	-
11	W11213353		Hood Motor, Single   (Replaces: W11039275)			Immediately	$ 182.33
12	W11095814		Divider, Air		Appelez-nous	-
13	W11095830		Air Guide, Left		Appelez-nous	-
14	W11086300		Housing, Cavity Lighting		Appelez-nous	-
15	W11443139		Lamp, Led   (Replaces: W11384716)				$ 72.69
16	W11186948		Foil, Lamp				$ 67.55
17	W11098921		Base, Cavity Lighting				$ 67.23
18	W11099491		Holder, Wire		Appelez-nous	-
19	W11402082		Magnetron   (Replaces: W11115131)			Immediately	$ 325.40
20	W11443128		Thermostat, Magnetron   (Replaces: W11378280)				$ 16.80
