SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Cooking Parts
Door And Vent Parts
Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:

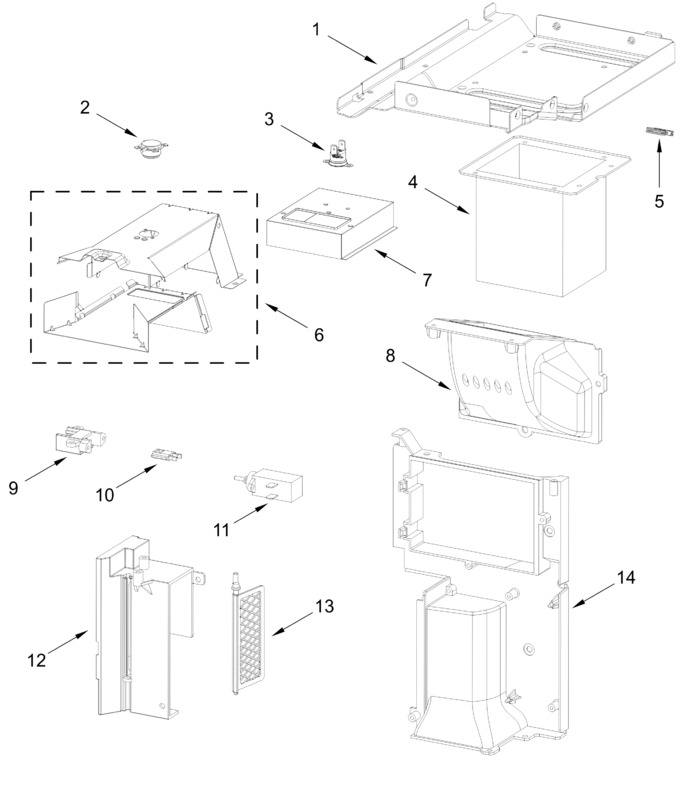

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11779007 | Plate, Transformer (Replaces: W11712261) |
|
- | |||||
| 2 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 3 | W11707360 | Thermostat, Cavity (Replaces: W11636031) |
|
$ 34.10 | |||||
| 4 | W11755317 | Transformer, High Voltage |
|
Immediately | $ 106.70 | ||||
| 5 | W11785057 | Cover, Wire (Replaces: W11713774) |
|
- | |||||
| 6 | W11778998 | Channel, Cavity Outlet (Replaces: W11777280) |
|
- | |||||
| 7 | W11778999 | Channel, Cavity Outlet (Replaces: W11666343) |
|
- | |||||
| 8 | W11785059 | Air Channel, Transformer (Replaces: W11712265) |
|
- | |||||
| 9 | W11785063 | Support, Valve Door Driver (Replaces: W11634513) |
|
- | |||||
| 10 | W11785066 | Driver, Valve Door (Replaces: W11634512) |
|
- | |||||
| 11 | W11791282 | Actuator (Replaces: W11711852) |
|
- | |||||
| 12 | W11785069 | Cover, Valve (Replaces: W11634510) |
|
- | |||||
| 13 | W11785067 | Door, Valve (Replaces: W11634511) |
|
- | |||||
| 14 | W11785061 | Plate, Transformer Support (Replaces: W11712263) |
|
- |
