Control Panel Parts


Internal Oven Parts


Oven Door Parts

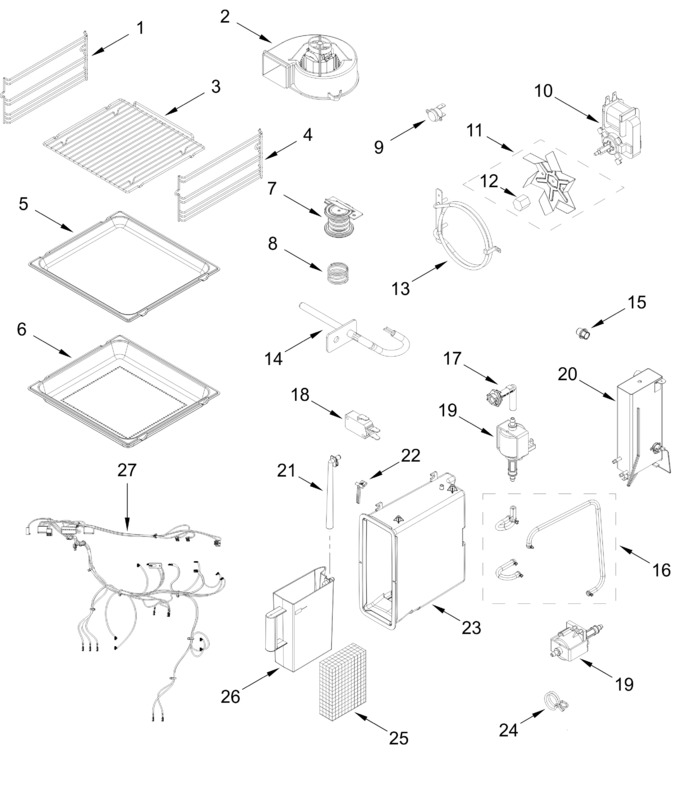

Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11813948		Grid, Rack Left Side   (Replaces: W11813828)		Appelez-nous	-
2	W10586916		Fan, Cooling				$ 302.80
3	W11813947		Rack, Wire Shelf   (Replaces: W11813827)		Appelez-nous	-
4	W11813949		Grid, Rack Right Side   (Replaces: W11813830)		Appelez-nous	-
5	W10577820		Tray, Bake/drip				$ 303.35
6	W10577816		Tray, Steam				$ 311.90
7	W10587885		Gasket, Air Flow		Appelez-nous	-
8	W10587880		Spring, Air Flow		Appelez-nous	-
9	W11512073		Thermostat   (Replaces: W11510588)		Appelez-nous	-
10	W11512467		Motor, Convection Fan   (Replaces: W11510587)		Appelez-nous	-
11	W10586917		Blade, Convection Fan (includes Nut)				$ 41.30
12	W11237447		Nut, Convection Fan   (Replaces: W10781713)				$ 12.10
13	WPW10493735		Heater, Convection Element   (Replaces: W10493735)			Immediately	$ 94.71
14	W11353409		Sensor, Cavity Temperature				$ 71.09
15	W10588572		Gasket, Steam Outlet				$ 84.75
16	W11366439		Tube, Silicon				$ 18.86
17	W10586491		Tubing, Connection Boiler				$ 96.53
18	W11512093		Microswitch   (Replaces: W11511177)			Immediately	$ 57.59
19	W10586915		Pump, Fill And Drain			Immediately	$ 324.67
20	W11353847		Heater, Boiler   (Replaces: W11353385)				$ 348.93
21	W10587540		Pipe, Water Container Fill				$ 24.20
22	W10586492		Sensor, Boiler Temperature				$ 59.81
23	W10586494		Housing, Water Container				$ 171.64
24	W10587851		Clamp, Tubing		Appelez-nous	-
25	W10577833		Sponge				$ 209.67
26	480123100285		. Reservoir, Water Container		Appelez-nous	-
27	W11353395		Harness, Main				$ 243.46
