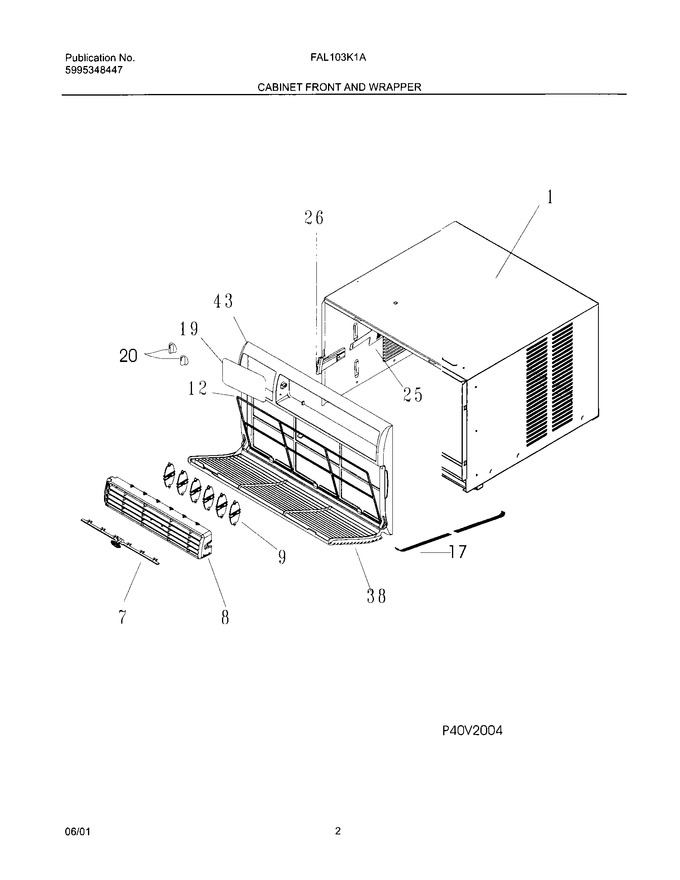

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309609212 | Cabinet,sleeve ,complete Assy |
|
- | |||||
| 2 | 5304414101 | Grill,rear |
|
- | |||||
| 7 | 309638601 | Link |
|
- | |||||
| 8 | 309639701 | Louver,horizontal |
|
- | |||||
| 9 | 309342001 | Louver,vertical ,(6) |
|
- | |||||
| 12 | 309343502 | Filter-air,8.32 X 22.40 |
|
$ 29.82 | |||||
| 17 | 309640302 | Front-panel Complete |
|
$ 137.97 | |||||
| 19 | 309344501 | Dial Plate |
|
- | |||||
| 20 | 309307013 | Knob-control |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 309328602 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309639401 | Handle,vent Door |
|
- | |||||
| 26 | 309330201 | Detent-vent |
|
$ 26.30 | |||||
| 38 | 309639601 | Panel-front |
|
$ 86.21 | |||||
| NI | 309640402 | Louver |
|
- |
