Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

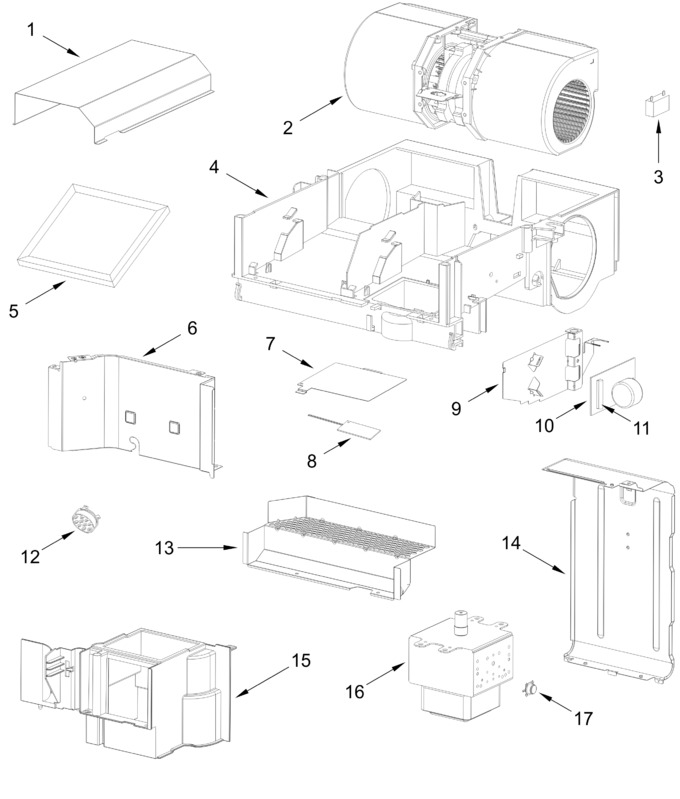

| 1 | W10533111 | Outlet, Cavity (back) |
|
- | |||||
| 2 | W11662638 | Motor, Hood Fan (Replaces: W11590194) |
|
$ 192.63 | |||||
| 3 | W11405833 | Capacitor, Hood Motor |
|
$ 38.03 | |||||
| 4 | W10892373 | Baseplate, Air Guide |
|
$ 78.48 | |||||
| 5 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 6 | W10533116 | Plate, Air Deflector |
|
$ 22.56 | |||||
| 7 | W11795646 | Cover, Lamp (Replaces: W11715347) |
|
- | |||||
| 8 | W11443139 | Lamp, Led (Replaces: W11384716) |
|
$ 72.69 | |||||
| 9 | W10533484 | Cover, Duct (right) |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 11 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 41.27 | ||||
| 12 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 13 | W10715053 | Shield, Finger |
|
- | |||||
| 14 | W10533114 | Deflector, Air |
|
- | |||||
| 15 | W10892381 | Outlet, Cavity (front) |
|
- | |||||
| 16 | W11795656 | Magnetron (Replaces: W11769076) |
|
- | |||||
| 17 | W10832024 | Thermostat, Magnetron |
|
$ 77.93 |
