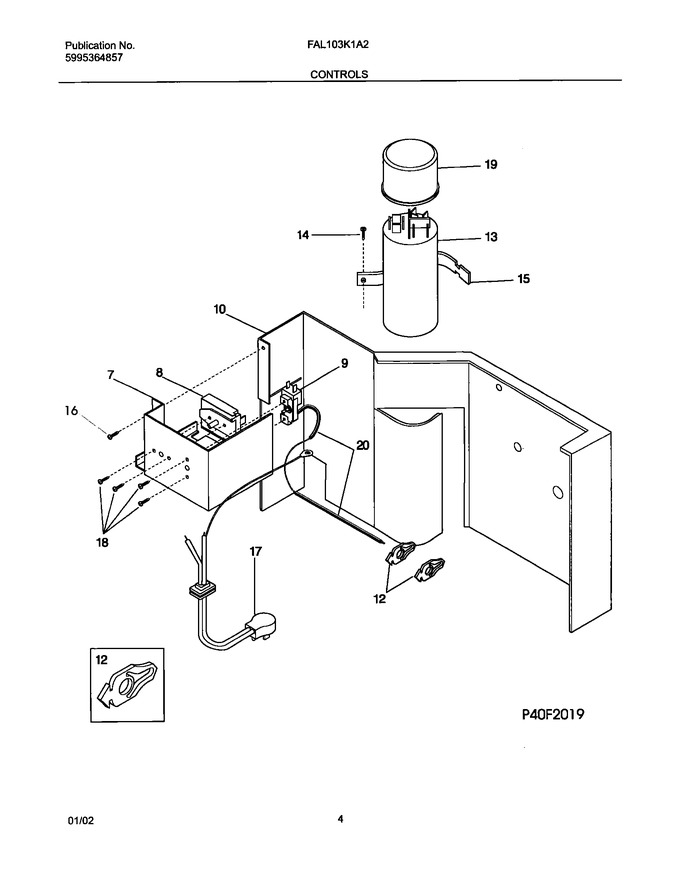

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309605603		Control Box		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
12	5303002169		Clip-control Bulb		Appelez-nous	-
14	5303285199		Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head		Appelez-nous	-
15	309111901		Strap,capacitor Mtg.		Appelez-nous	-
16	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
17	309343104		Cord-service		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	5304417582		Sleeve,temp Sensor ,6 In.		Appelez-nous	-
F13	5303291523		Capacitor,370 V ,10+40 Mfd				$ 186.32
F8	5304417447		Switch,selector ,7 Posn,3 Speed		Appelez-nous	-
F9	5303316597		Control-temperature		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
