SELECT A DIAGRAM

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts

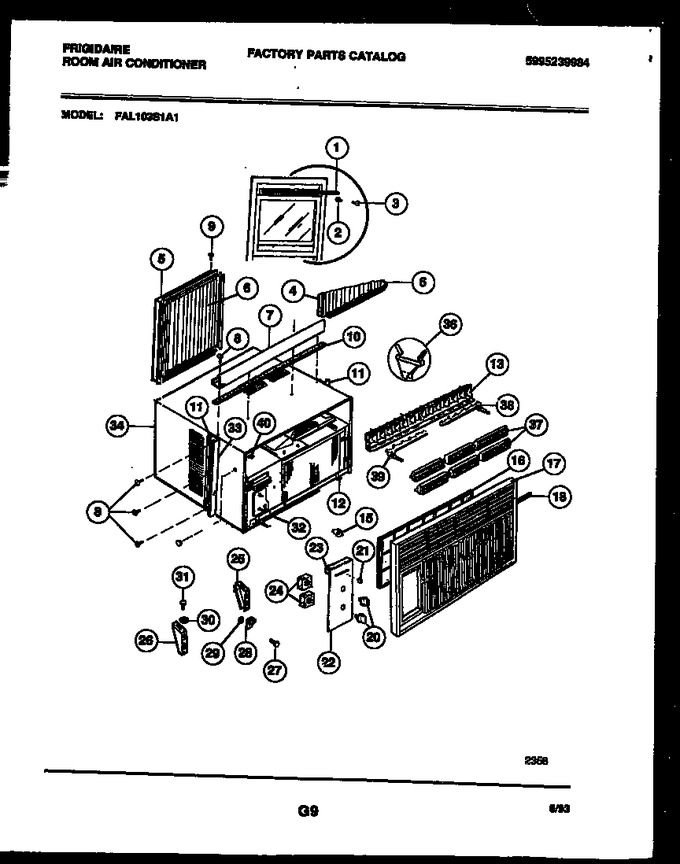

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3002603		Gasket-window		Appelez-nous	-
2	3018951		Bracket		Appelez-nous	-
3	3002803		Screw		Appelez-nous	-
4	3203060		Frame-rh		Appelez-nous	-
5	3202964		Frame-lh		Appelez-nous	-
6	5303211382		Closure-accordian		Appelez-nous	-
7	3001873		Rail, Top		Appelez-nous	-
8	3015312		Screw		Appelez-nous	-
9	3002801		Screw-frame		Appelez-nous	-
10	5303207200		Seal-top Rail		Appelez-nous	-
11	3202966		Retainer		Appelez-nous	-
12	5308010914		Clip-front To Base		Appelez-nous	-
13	5303002458		Louver With Link		Appelez-nous	-
15	3203495		Clip-filter		Appelez-nous	-
16	5303001809		Filter		Appelez-nous	-
17	5303300132		Front Complete		Appelez-nous	-
18	5308014101		Seal-mullion		Appelez-nous	-
19	5303300134		Insert-mullion		Appelez-nous	-
20	5303271478		Knob-control		Appelez-nous	-
21	5303271479		Knob-slide		Appelez-nous	-
22	5303300135		Dial Plate		Appelez-nous	-
23	5303001984		Seal		Appelez-nous	-
24	5303001775		Spacer		Appelez-nous	-
25	5303284689		Bracket-rh		Appelez-nous	-
26	5303284690		Bracket-lh		Appelez-nous	-
27	3007756		Screw (2)		Appelez-nous	-
28	3001815		Bracket		Appelez-nous	-
29	3007759		Lock Nut (2)		Appelez-nous	-
30	3017023		Lock Nut (4)		Appelez-nous	-
31	5303281649		Screw (4)		Appelez-nous	-
32	5314949603		Seal-chassis,bottom		Appelez-nous	-
33	5303276728		Seal,retainer		Appelez-nous	-
34	5303293801		Wrapper		Appelez-nous	-
35	5303271346		Screw-front Mounting		Appelez-nous	-
36	5303001844		Clip-louver		Appelez-nous	-
37	5303300133		Louver		Appelez-nous	-
38	5303293786		Link-rh		Appelez-nous	-
39	5303293787		Link-lh		Appelez-nous	-
40	08010928		Nut-front		Appelez-nous	-
*79432	5303925121		Kit-window Mounting		Appelez-nous	-
34A	5303293393		Grille-rear (non-illustrated)		Appelez-nous	-
34B	5303300131		Nameplate-grille (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
