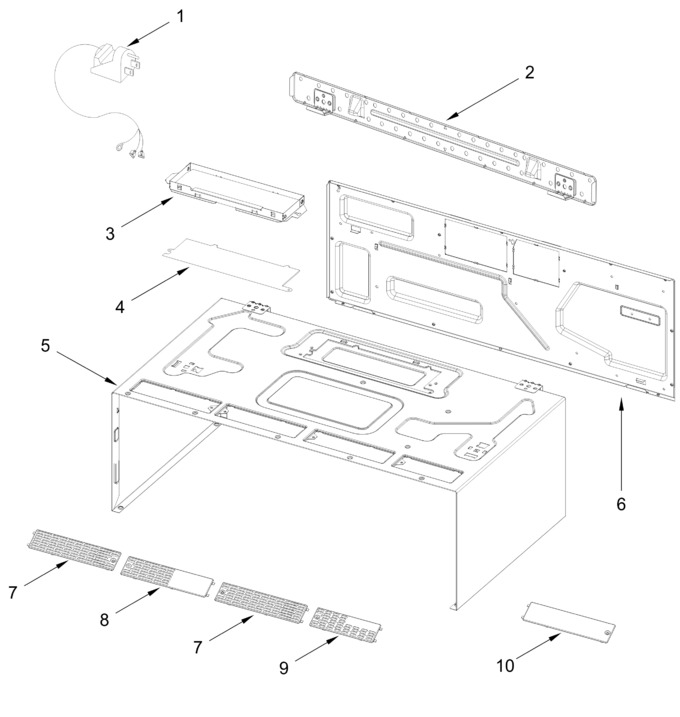

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11187358 | Cord, Power |
|
- | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11127064 | Cover, Exhaust (black) |
|
$ 71.94 | |||||
| 5 | W11475330 | Case, Outer (black) |
|
$ 101.51 | |||||
| 6 | W11360416 | Backplate, Oven |
|
$ 66.41 | |||||
| 7 | W11086309 | Grille, Long Vent (stainless) |
|
$ 98.27 | |||||
| 8 | W11095781 | Grille, Light Access Vent (stainless) |
|
$ 98.27 | |||||
| 9 | W11086310 | Grille, Short Vent (stainless) |
|
$ 98.26 | |||||
| 10 | W11397086 | Cover, Long Vent (stainless) (Replaces: W11095767) |
|
Immediately | $ 62.15 | ||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | |||||
| W11702698 | Template, Upper Installation (english & Spanish) |
|
- | ||||||
| W11745244 | Harness, Door Hinge To Acu (Replaces: W11659048) |
|
- | ||||||
| W11745247 | Harness, Hmi To Door Hinge A07 (Replaces: W11659047) |
|
- | ||||||
| W11745239 | Harness, Main (Replaces: W11659049) |
|
- | ||||||
| W11707572 | Signal Harness, Door & Odm To Acu (Replaces: W11577230) |
|
$ 28.50 | ||||||
| ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 | Miscellaneous Parts |
|
- |
