SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt


04 - Control Panel

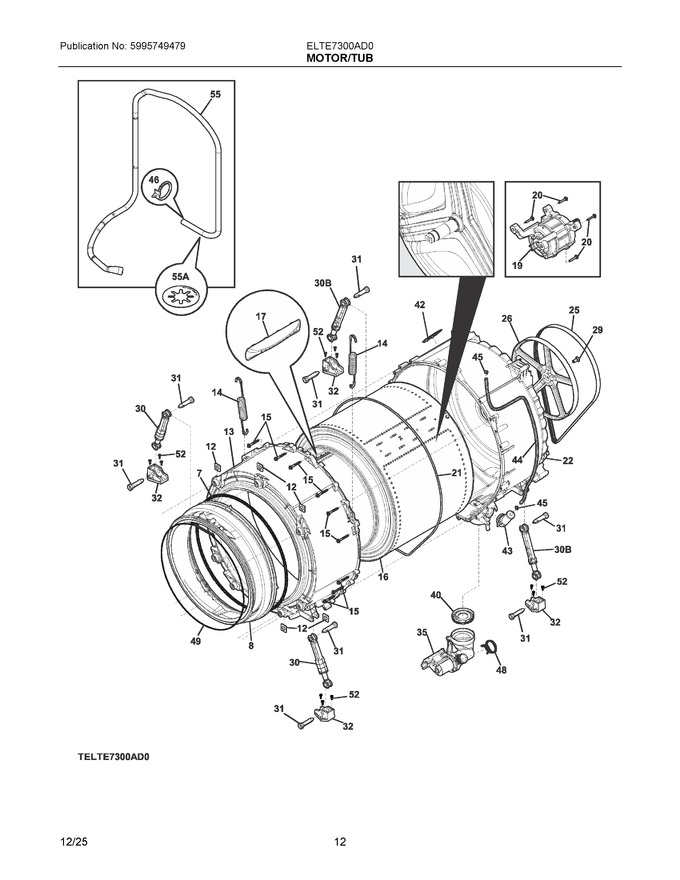

05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	134616200		Spring, Boot Retainer			Immediately	$ 49.28
8	140004669051		Bellows, Door Boot			Immediately	$ 129.32
12	5304505175		Plate, Counterweight, (7), W/nut Insert				$ 13.01
13	5304533999		Shell, Tub, Front				$ 169.55
14	5304505117		Spring, Tub Suspension, (2)			Immediately	$ 67.44
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 15.60
16	5304505337		Drum Assembly, Spin Basket, W/vanes				$ 498.10
17	137263600		Vane			Immediately	$ 53.07
19	5304515226		Motor, Cim 55 Stack			Immediately	$ 328.73
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 12.05
21	5304522569		Seal, Tub Shell			Immediately	$ 58.56
22	5304505158		Shell, Outer Tub, Rear, W/bearing, Seal				$ 477.14
25	134616701		Belt, Drive, Poly-v			Immediately	$ 57.06
26	5304514822		Pulley, Drum Drive, Rear			Immediately	$ 183.38
29	5304505380		Bolt, W/washer, M10 X 1.5			Immediately	$ 34.88
30	137412701		Shock Absorber, Dual Stage			Immediately	$ 76.15
31	5304532011		Pin, Shock Mtg.			Immediately	$ 7.96
32	134363200		Bracket, Shock Mtg.				$ 19.13
35	5304505209		Drain Pump, Assembly, Idb, W/filter			Immediately	$ 230.66
40	5304505208		Diaphragm, Valve Assy				$ 56.39
42	134737300		Clamp, Bellows Hose				$ 20.13
43	5304535707		Air Chamber, Assembly		Appelez-nous	-
44	5304535282		Hose, Pressure Switch   (Replaces: 5304505210)				$ 34.18
45	137087500		Clamp, Hose				$ 10.13
46	134261300		Clip, Drain Hose, Push-mount				$ 12.05
48	5304536802		Clamp, Hose			Immediately	$ 4.01
49	134616300		Clamp, Bellows, Spring Held			Immediately	$ 35.44
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
55	137629209		Drain Hose, Assembly, One Piece, W/cable Ties			Immediately	$ 58.27
30B	137412601		Shock Absorber, Single Stage			Immediately	$ 50.72
55A	137385100		Ring, Anti-syphon				$ 14.18
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
NI	131931202		Dampener, Vibration, Foam				$ 17.35
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NIA	5304537816		Clamp, Hose		Appelez-nous	-
NIA	5304505437		Screw, Housing Mtg.		Appelez-nous	-
NIA	137110800		Cushion, Shock Bracket, Left Rear				$ 13.46

    View Diagram in Separate Window       Print Part List
