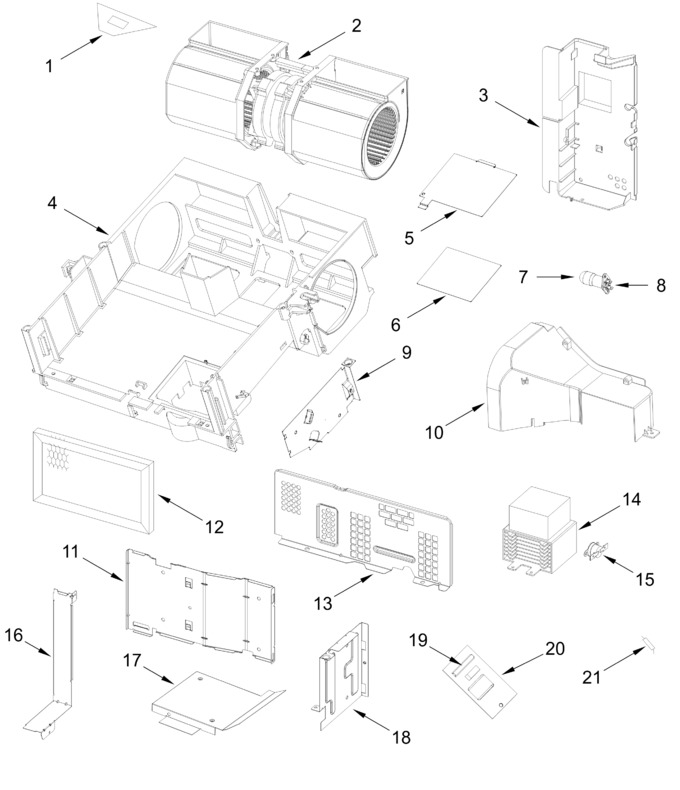

Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 2 | W11442100 | Motor, Fan (Replaces: W11109701) |
|
Immediately | $ 176.10 | ||||
| 3 | W11292618 | Air Guide, Lower |
|
- | |||||
| 4 | W11268295 | Baseplate, Air Guide |
|
$ 58.79 | |||||
| 5 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 6 | W11391720 | Glass, Cavity Lamp (Replaces: W11268331) |
|
- | |||||
| 7 | 8206232A | Lamp, Cavity (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 8 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 9 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 10 | W11283720 | Deflector, Air |
|
- | |||||
| 11 | W11268306 | Plate, Air Guide Sealing |
|
- | |||||
| 12 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 15.95 | ||||
| 13 | W10342991 | Shield, Finger |
|
$ 145.57 | |||||
| 14 | W10754299 | Magnetron |
|
Immediately | $ 208.09 | ||||
| 15 | W11679669 | Thermostat, Magnetron (Replaces: W11360415) |
|
Immediately | $ 37.49 | ||||
| 16 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 17 | W11314197 | Support, Sensor |
|
- | |||||
| 18 | W11268304 | Guide, Air |
|
- | |||||
| 19 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 20 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 21 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 |
