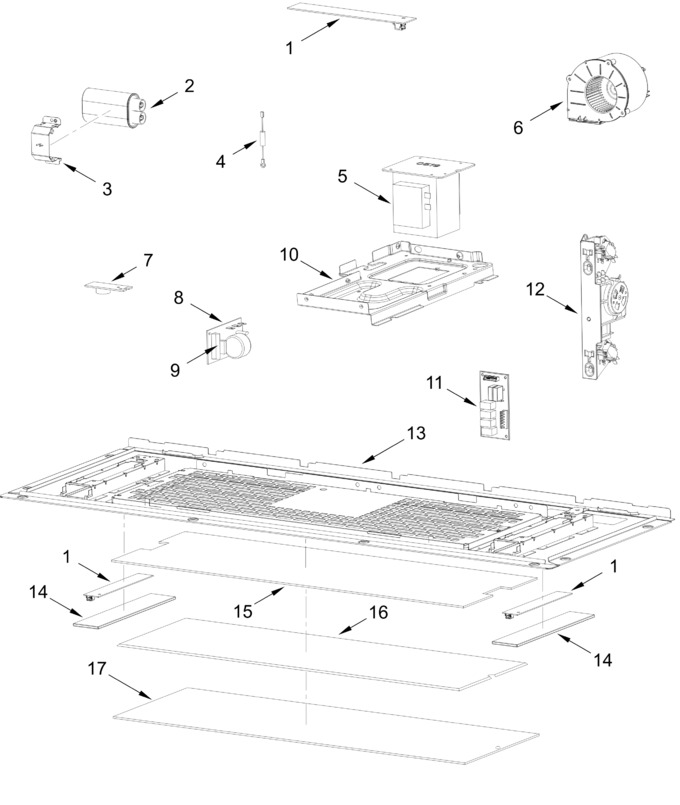

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662697 | Light Strip, Led (Replaces: W11573514) |
|
$ 38.07 | |||||
| 2 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 167.89 | |||||
| 3 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 4 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 5 | W11575449 | Transformer, High Voltage |
|
$ 168.59 | |||||
| 6 | W11662648 | Assembly, Cooling Fan (Replaces: W11615947) |
|
Immediately | $ 97.71 | ||||
| 7 | W10163422 | Thermistor |
|
$ 154.03 | |||||
| 8 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 9 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 41.27 | ||||
| 10 | W11586579 | Plate, Hvt Support |
|
- | |||||
| 11 | W11676832 | Hood Control (mimas) (Replaces: W11594596) |
|
$ 270.05 | |||||
| 12 | W11662685 | Assembly, Interlock (Replaces: W11590601) |
|
Immediately | $ 71.65 | ||||
| 13 | W11593188 | Plate, Bottom |
|
Immediately | $ 122.81 | ||||
| 14 | W11593189 | Glass, Light |
|
- | |||||
| 15 | W11662714 | Filter, Charcoal (Replaces: W11593195) |
|
Immediately | $ 31.74 | ||||
| 16 | W11662703 | Filter, Grease (Replaces: W11593196) |
|
$ 32.05 | |||||
| 17 | W11662702 | Cover, Filter (Replaces: W11662386) |
|
$ 64.23 |
