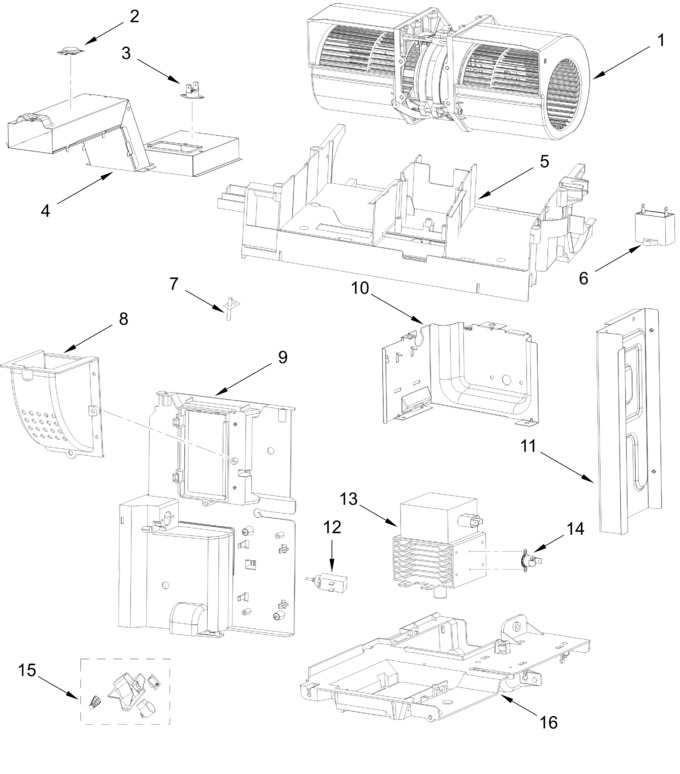

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11662638		Motor, Hood Fan   (Replaces: W11590194)				$ 192.63
2	W10557536		Sensor, Humidity				$ 109.12
3	W11707360		Thermostat, Cavity   (Replaces: W11636031)				$ 34.10
4	W11707361		Channel, Cavity Outlet   (Replaces: W11706999)		Appelez-nous	-
5	W11707358		Baseplate,air Guide   (Replaces: W11634509)		Appelez-nous	-
6	W11405831		Capacitor, Motor				$ 38.03
7	W10557537		Sensor, Convection				$ 71.07
8	W11662646		Air Channel, Transformer   (Replaces: W11586583)				$ 49.36
9	W11707310		Air Channel, Magnetron   (Replaces: W11659088)		Appelez-nous	-
10	W11586584		Channel, Right Hood		Appelez-nous	-
11	W11662662		Air Channel, Back   (Replaces: W11586581)		Appelez-nous	-
12	W10458325		Actuator				$ 83.50
13	W11391712		Magnetron   (Replaces: W10836571)			Immediately	$ 153.97
14	W11707308		Thermostat, Magnetron   (Replaces: W11664266)			Immediately	$ 34.09
15	W11707319		Module, Infrared   (Replaces: W11606468)		Appelez-nous	-
16	W11662695		Plate, Magnetron Support   (Replaces: W11586580)				$ 52.49
