Diagram for 04 - Air Handling Parts
04 - Air Handling Parts

Diagram for 05 - Compressor Parts
05 - Compressor Parts

Diagram for 06 - Window Mounting Parts
06 - Window Mounting Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309603103 Compressor Appelez-nous -
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 5303291330 Gasket-cover Appelez-nous -
7 5304416126 Cover-terminal,gs Cmpr355ou-l Appelez-nous -
7 5303291329 Cover-terminal Appelez-nous -
8 5304403166 Overload Protector Appelez-nous -
9 5303294292 Nut-cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309606103 Evaporator Appelez-nous -
12 5304403945 Condenser Appelez-nous -
13 309606001 Tray-evaporator Appelez-nous -
14 309606001 Tray-evaporator Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -
20 5303291328 Spring-overload Appelez-nous -
21 5303293809 Washer Appelez-nous -
36 5303303558 Strap-chassis Pull Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

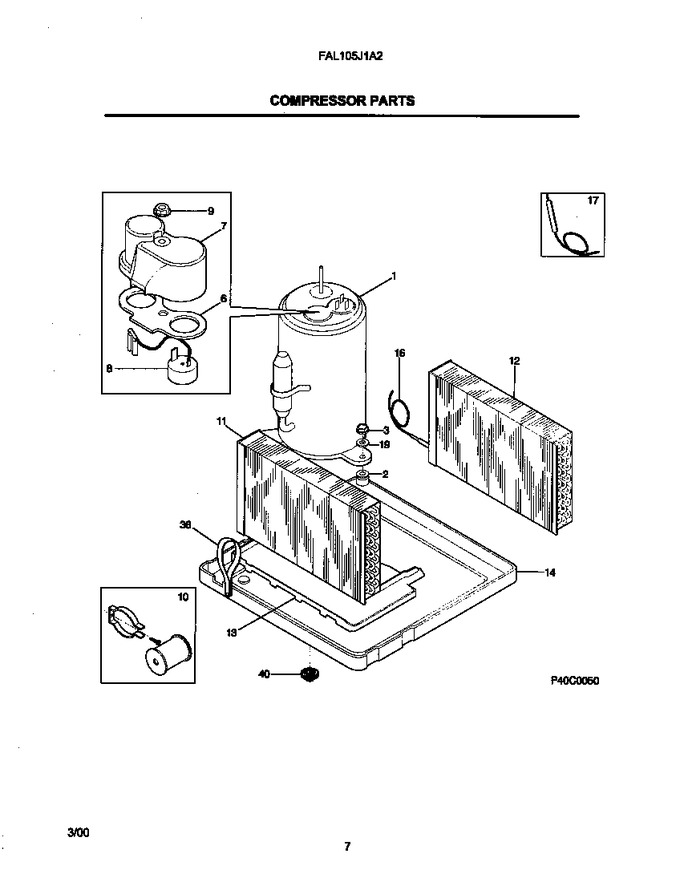

Diagram for FAL105J1A2
