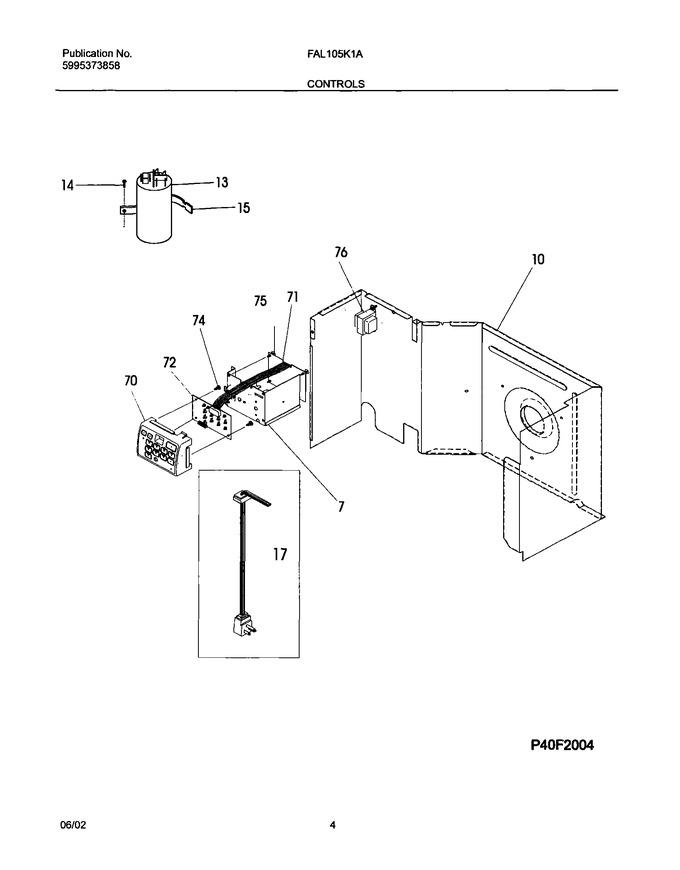

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
7	309605605		Control Box		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
15	309111901		Strap,capacitor Mtg.		Appelez-nous	-
70	309342301		Enclosure,elec Control Mt				$ 18.38
71	309340503		Pc Board,power		Appelez-nous	-
72	309340601		Pc Board,input		Appelez-nous	-
74	3201861		Screw,6-20ab X 0.38   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
F13	5303291523		Capacitor,370 V ,10+40 Mfd				$ 186.32
F17	309343104		Cord-electric Power,14 Awg ,115 V		Appelez-nous	-
NI	08017123		Holder,thermistor ,w/seal		Appelez-nous	-
NI	5304415017		Protector,rbn Wire Sleeve		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
