Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3202959 Panel-control Appelez-nous -
2 5303201621 Switch Appelez-nous -
3 5303002079 Control Temp Appelez-nous -
4 5303007754 Screw-control Appelez-nous -
5 3202962 Divider Appelez-nous -
6 3202963 Insulation-divider Appelez-nous -
7 5308017362 Cord-service Appelez-nous -
8 5308007201 Capacitor (dual) Appelez-nous -
9 5303015323 Capacitor (strap) Appelez-nous -
10 5303015427 Screw-strap Appelez-nous -
11 5303210984 Bulkhead Appelez-nous -
12 3203075 Clip-sensing Bulb Appelez-nous -
13 5303015427 Screw - Divider Appelez-nous -
14 3204944 Door-vent Appelez-nous -
15 5303015298 Cable - Vent Door Appelez-nous -
16 5303202999 Retainer - Actuator Appelez-nous -
17 3202941 Actuator-arm Appelez-nous -
18 5303202961 Harness Appelez-nous -
19 5303002600 Sleeve Appelez-nous -
20 5308007834 Sleeve-bulb Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

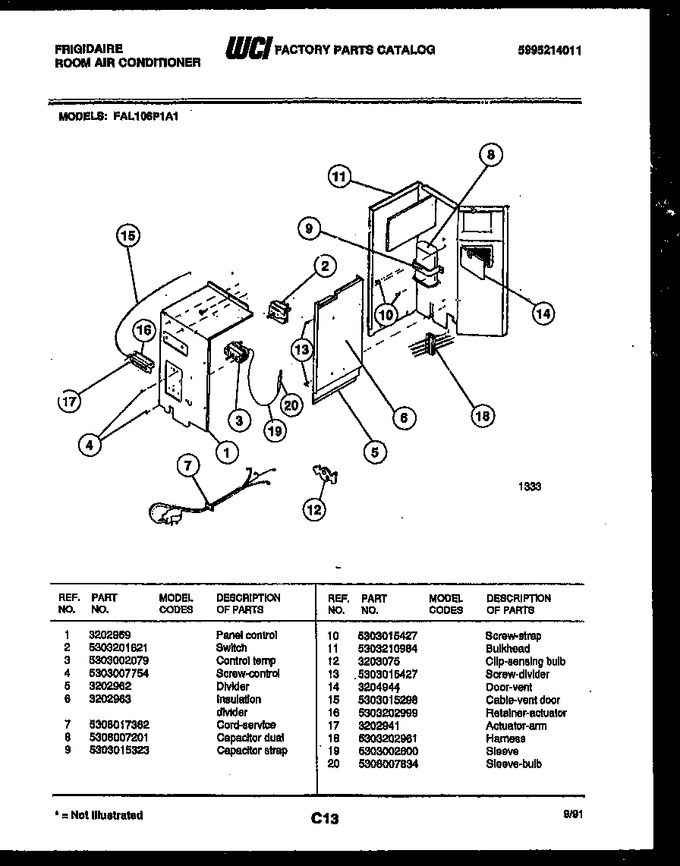

Diagram for FAL106P1A1
