01 - Cover

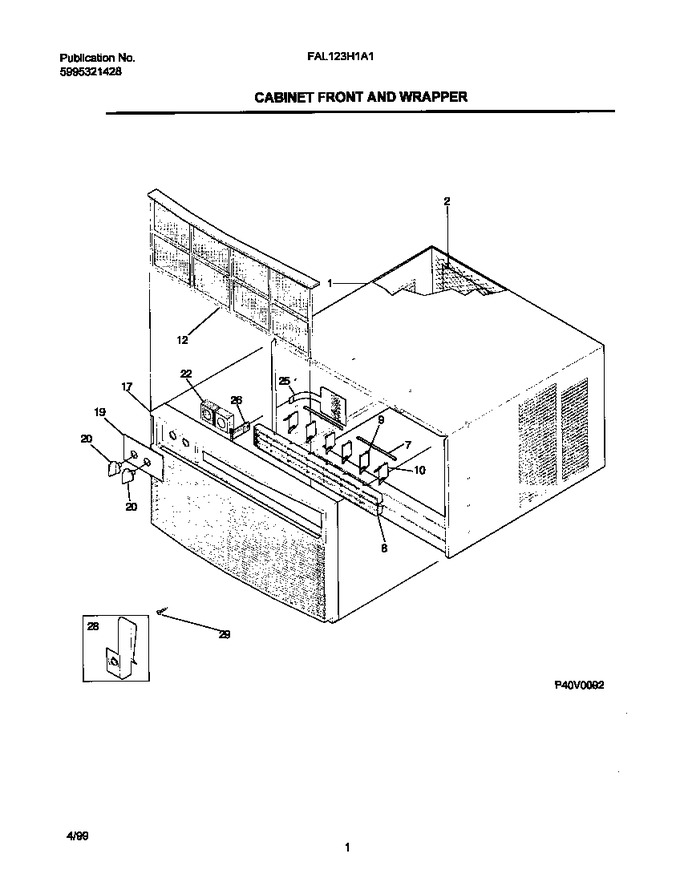

02 - Cabinet Front/wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309609207 | Cabinet |
|
- | |||||
| 2 | 5303303597 | Grille, Rear |
|
- | |||||
| 7 | 309304101 | Link,louver ,(2) |
|
- | |||||
| 8 | 309607702 | Louver |
|
- | |||||
| 9 | 309607801 | Louver-vertical, (4) |
|
- | |||||
| 10 | 309607802 | Louver,w/handle ,verical ,(2) |
|
- | |||||
| 12 | 309609502 | Filter |
|
$ 55.65 | |||||
| 16 | 5303301251 | Rail,top |
|
- | |||||
| 17 | 309609701 | Front Complete |
|
- | |||||
| 19 | 309614618 | Plate-dial 22tc Fac 3sp;es |
|
- | |||||
| 20 | 309307006 | Knob-control(2005;w/7005) |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 309328602 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309330201 | Detent-vent |
|
$ 26.30 | |||||
| 26 | 309328702 | Handle-vent Door 2005 (beige) |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 29 | 5304410881 | Screw-10-16 Phillips Hd. |
|
- |
