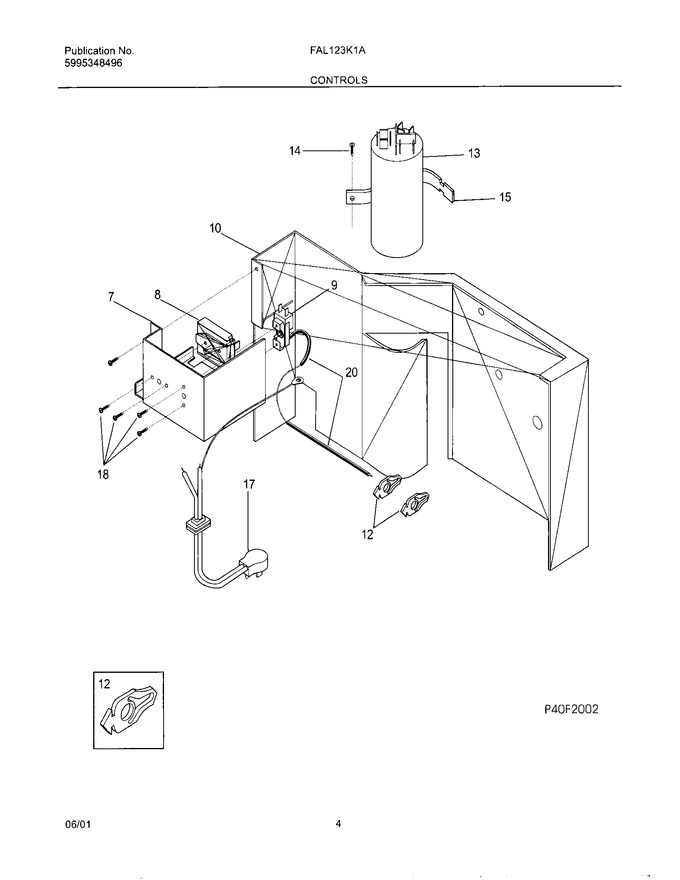

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309605603		Control Box		Appelez-nous	-
8	5304417447		Switch-7pos,3sp L Arkless		Appelez-nous	-
9	5303316597		Control-temperature		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
12	5303002169		Clip-control Bulb		Appelez-nous	-
13	5303318963		Capacitor,370 V		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343104		Cord-service		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
20	5303002600		Sleeve, Control		Appelez-nous	-
29	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
