02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts

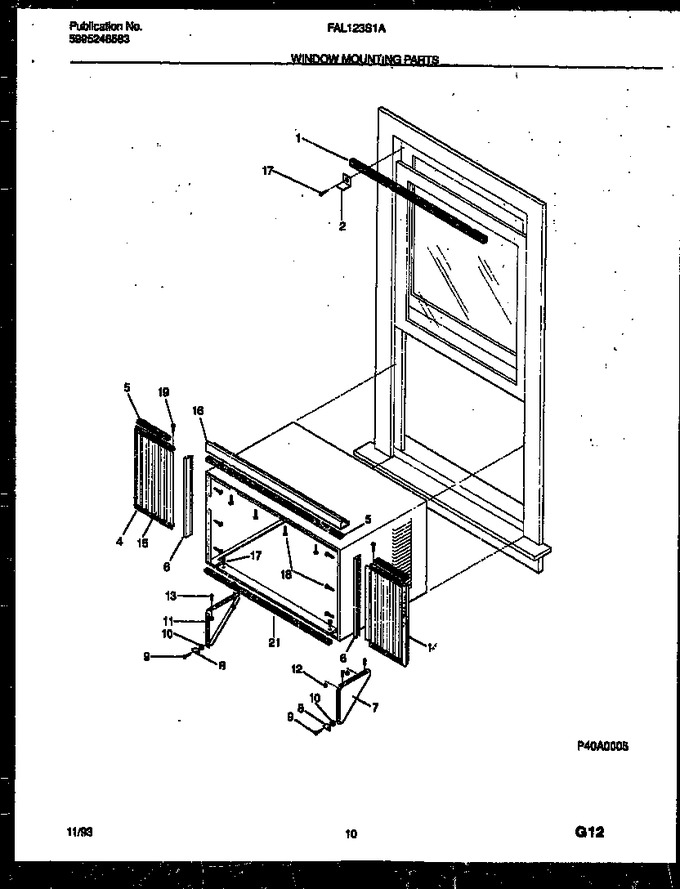

06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207198 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 5 | 5303016697 | Overload |
|
- | |||||
| 6 | 5303272298 | Gasket-cover |
|
- | |||||
| 7 | 3206230 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 3202947 | Evaporator |
|
- | |||||
| 12 | 5303207195 | Condenser |
|
- | |||||
| 13 | 5303210203 | Tray-evaporator |
|
- | |||||
| 14 | 5303284617 | Base |
|
- | |||||
| 16 | 5308017120 | Capillary Tube, Cut To 40`` |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- |
