SELECT A DIAGRAM
02 - Cabinet Front And Wrapper

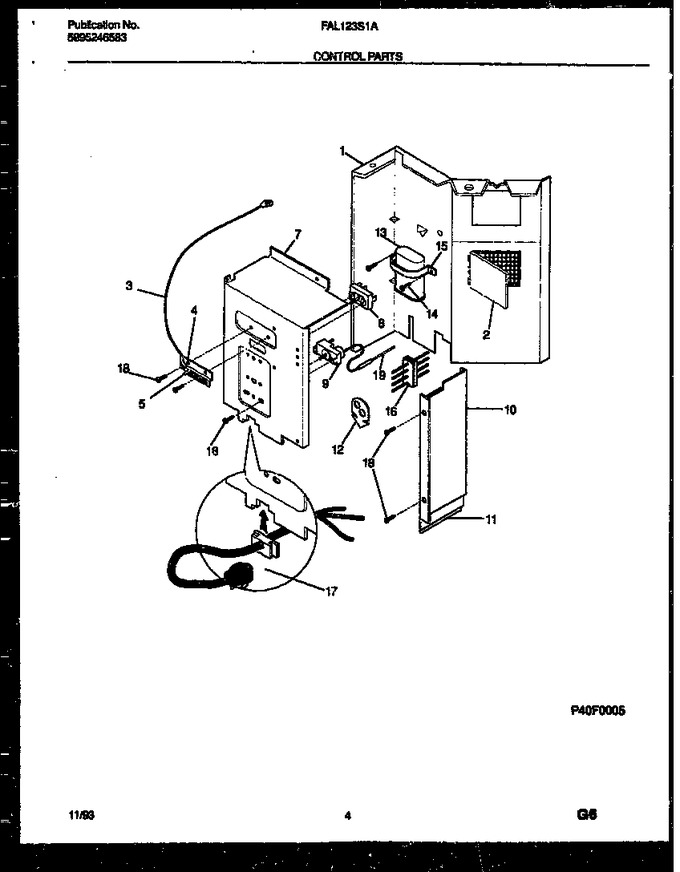

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Partition-control Area |
|
- | |||||
| 2 | 5303295752 | Door |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 5 | 3202941 | Arm-actuator |
|
- | |||||
| 7 | 5303293521 | Panel-control |
|
- | |||||
| 8 | 5303201621 | Switch |
|
- | |||||
| 9 | 5303002079 | Control-temperature |
|
- | |||||
| 10 | 3202963 | Insulation-divider |
|
- | |||||
| 11 | 5303210243 | Divider-vertical |
|
- | |||||
| 12 | 3203075 | Clip-control Bulb |
|
- | |||||
| 13 | 5308017135 | Capacitor 35-10/370 |
|
- | |||||
| 14 | 5303015427 | Screw-strap |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303202961 | Harness |
|
- | |||||
| 17 | 5303301021 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 19 | 5303002600 | Sleeve-control Tube |
|
- |
