01 - Cover

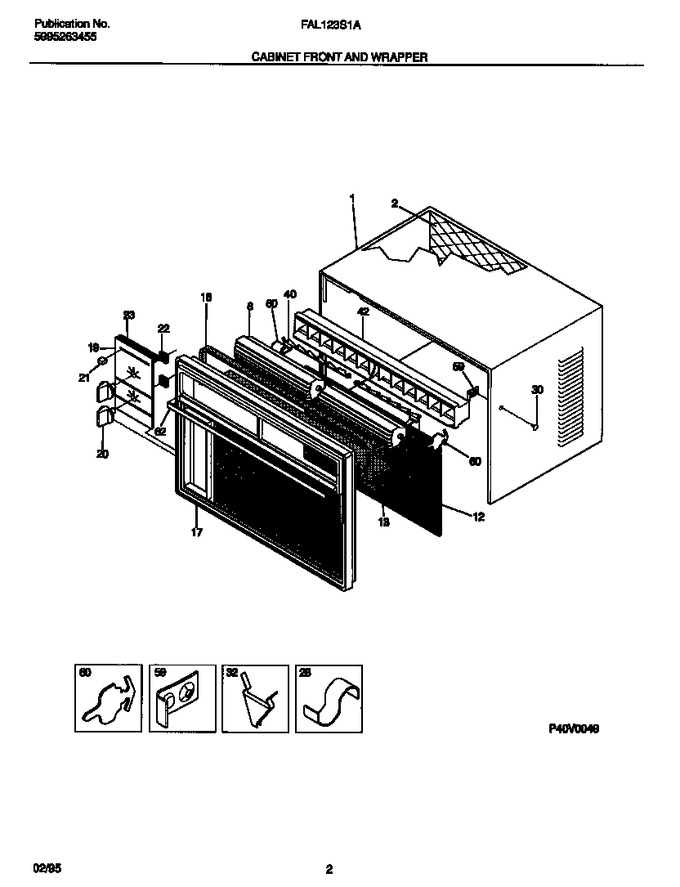

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301242 | Wrapper |
|
- | |||||
| 2 | 5303303597 | Panel-rear |
|
- | |||||
| 8 | 5303300133 | Louver-horiz. |
|
- | |||||
| 12 | 5303001809 | Filter |
|
- | |||||
| 13 | 5308014101 | Seal-mullion |
|
- | |||||
| 14 | 5303300134 | Insert-mullion |
|
- | |||||
| 15 | 5303300132 | Front Complete |
|
- | |||||
| 18 | 5303300135 | Dial Plate |
|
- | |||||
| 20 | 5303017300 | Knob-control, (2) |
|
- | |||||
| 21 | 5303271479 | Knob-slide |
|
- | |||||
| 22 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 28 | 5308010914 | Clip-front/base |
|
- | |||||
| 30 | 5303271346 | Screw-front |
|
- | |||||
| 32 | 5303001844 | Clip-link, (2) |
|
- | |||||
| 40 | 5303293787 | Link-louvers, Lh |
|
- | |||||
| 41 | 5303293786 | Link-louvers, Rh |
|
- | |||||
| 42 | 5303002458 | Louvers W/link, 5 |
|
- | |||||
| 59 | 08010928 | Nut - Front Lock |
|
- | |||||
| 60 | 3203495 | Clip-filter, (2) |
|
- |
