01 - Cover
02 - Cabinet Front And Wrapper

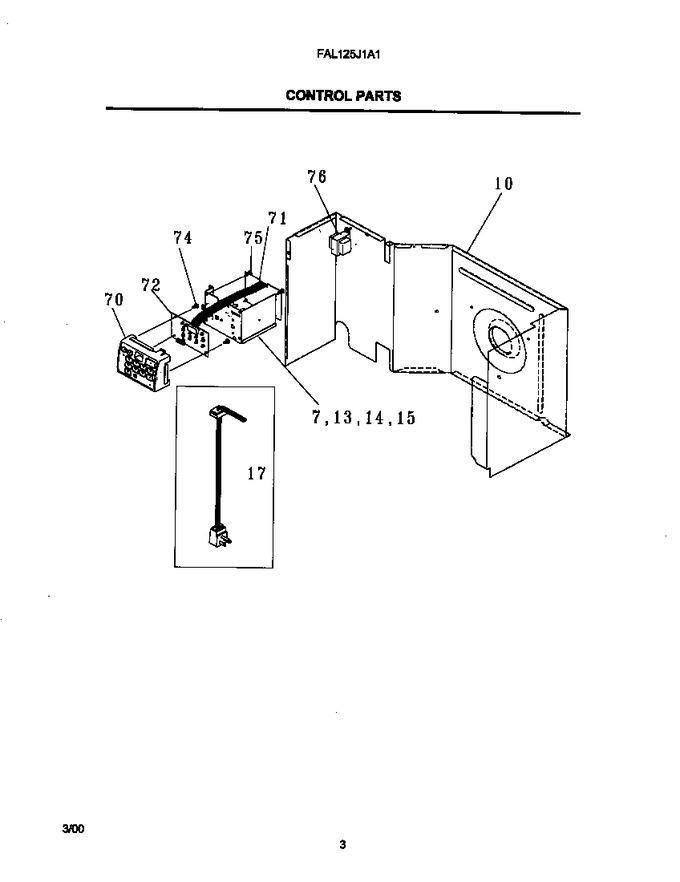

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605605 | Box-control T/c Rot;mtr W/lds |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343104 | Cord-srv 115v/14ga |
|
- | |||||
| 71 | 309340503 | Power Board |
|
- | |||||
| 74 | 3201861 | Screw-bracket (Replaces: 5303301590) |
|
$ 0.76 | |||||
| 75 | 5304413781 | Pc Board-support Hardware |
|
- | |||||
| 76 | 309111601 | Transformer 115/12volts |
|
- | |||||
| *82922 | 309111201 | Grommet,wire Protector |
|
- | |||||
| *82923 | 08017123 | Clip-control Bulb |
|
- | |||||
| *82924 | 5304415017 | Protector-trim-wire |
|
- |
