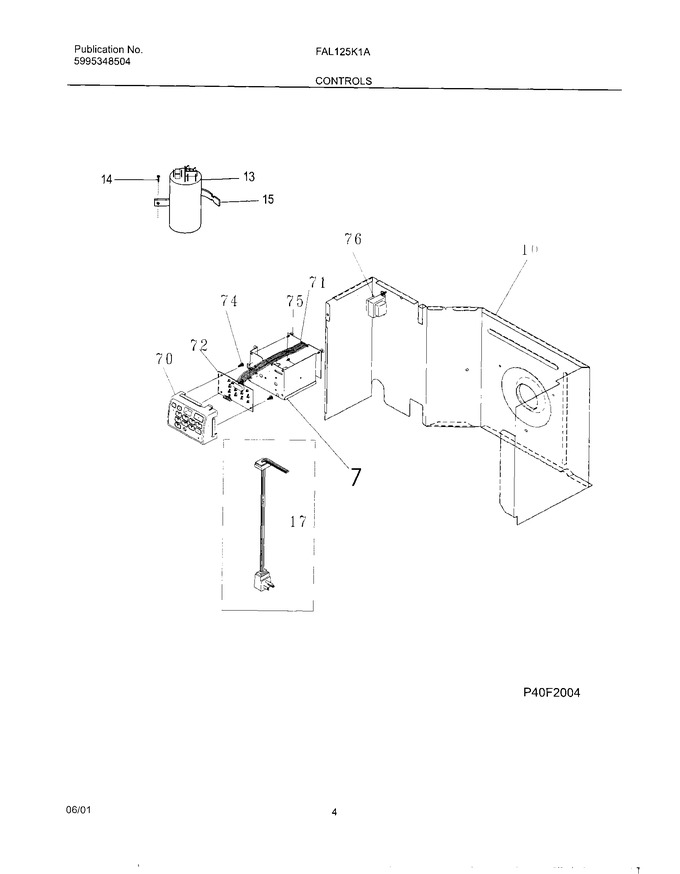

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309605605		Box-control		Appelez-nous	-
10	5303316617		Bulkhead		Appelez-nous	-
13	5304419793		Capacitor10/370 Vac,50+10/370 Vac		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
17	309343104		Cord-service		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
29	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
71	309350401		Power Board		Appelez-nous	-
72	309350402		Pc Board,input		Appelez-nous	-
74	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
75	5304413781		Support-pc Board		Appelez-nous	-
76	309111601		Transformer,120/12 Volt		Appelez-nous	-
NI	5304415017		Protector		Appelez-nous	-
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	08017123		Clip-control Bulb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
