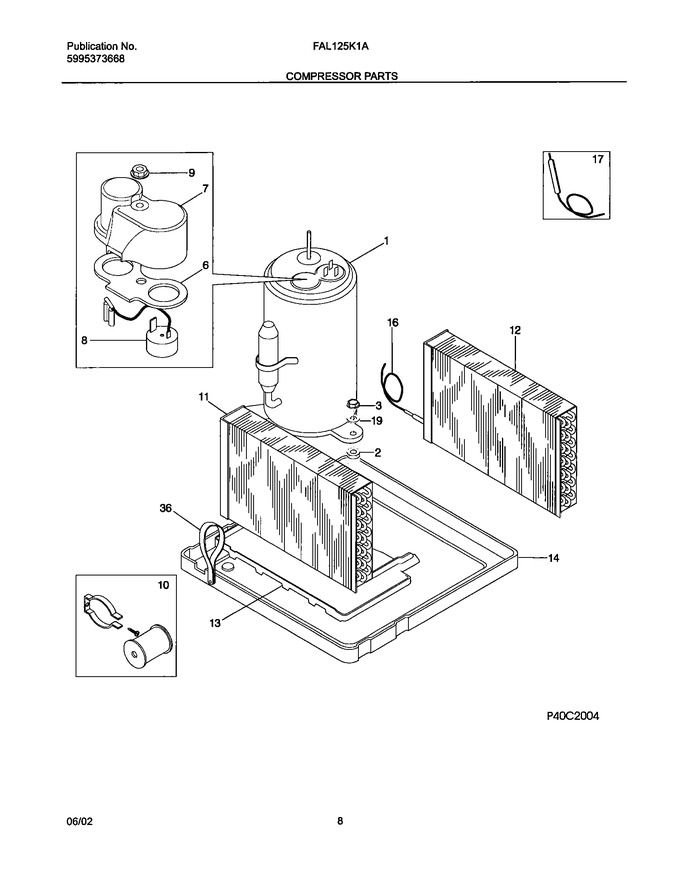

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303272298		Gasket,terminal Cover ,compressor Elec		Appelez-nous	-
7	3206230		Cover,terminal ,compressor Elec		Appelez-nous	-
9	5303211017		Nut,terminal Cover ,compressor Elec		Appelez-nous	-
11	309635501		No.evap Assy-22so 3rw/17fpi		Appelez-nous	-
13	309606001		Tray,evaporator Drip		Appelez-nous	-
14	5304414418		Base-compressor,22tc Staked		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
36	5303303558		Strap-chassis Pull		Appelez-nous	-
F1	5304414728		Compressor Rot(806-934-42e),sanyo		Appelez-nous	-
F10	5303317601		Start Assist Kit,compressor				$ 148.05
F12	5304407866		Condenser		Appelez-nous	-
F16	3203179		Capillary Tube,55 Inch Long ,cut-to-length		Appelez-nous	-
F17	5304415036		Process Tube,condenser		Appelez-nous	-
F8	5303016697		Overload Protector		Appelez-nous	-
NI	5303290357		Strainer		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-
