View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts

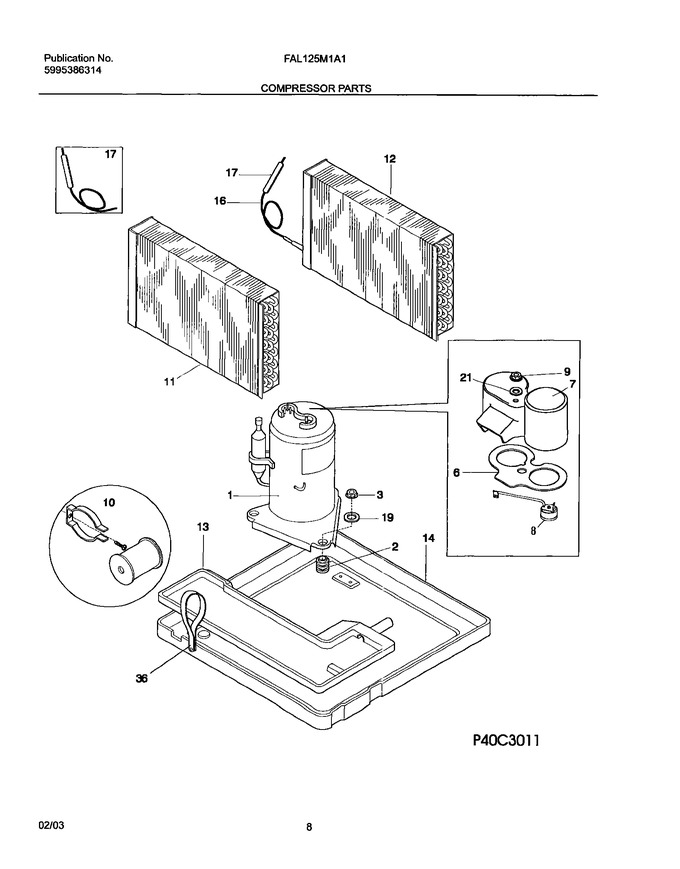

09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303291330 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5304416126 | Cover,elec Terminal ,compressor |
|
- | |||||
| 9 | 5303294292 | Nut-terminal Cover |
|
- | |||||
| 13 | 309606001 | Tray,evaporator Drip |
|
- | |||||
| 14 | 5304419798 | Base,compressor Mt. ,grey |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 21 | 5303293809 | Washer,terminal Cover |
|
- | |||||
| 36 | 5303303558 | Strap-chassis Pull |
|
- | |||||
| F1 | 309603122 | Compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309635505 | Evaporator |
|
- | |||||
| F12 | 5304407866 | Condenser |
|
- | |||||
| F16 | 5304423363 | Capillary Tube,43 Inch Long ,cut-to-length |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5304430489 | Overload Protector |
|
$ 58.81 |
