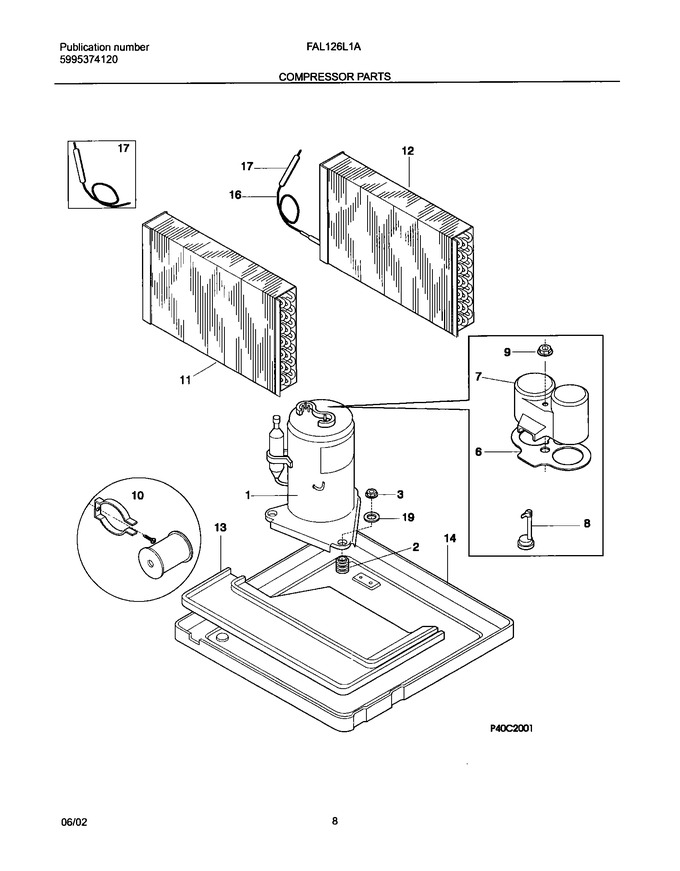

01 - Cover
03 - Wrapper
05 - Controls
07 - Air Handling
09 - System
11 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket - Terminal Cover |
|
- | |||||
| 7 | 5304405245 | Cover,compr Terminal |
|
- | |||||
| 9 | 3201670 | Nut,terminal Cover |
|
- | |||||
| 13 | 309606001 | Tray,evaporator Drip |
|
- | |||||
| 14 | 5304419798 | Base,compressor Mt. ,grey |
|
- | |||||
| 17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| F1 | 309616920 | Compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309635503 | Evaporator |
|
- | |||||
| F12 | 5304426744 | Condenser |
|
- | |||||
| F16 | 5304417693 | Capillary Tube,37 Inch Long ,cut To Length |
|
- | |||||
| F8 | 5304426743 | Overload Protector |
|
- | |||||
| NI | 5303290357 | Strainer |
|
- | |||||
| NI | 309112501 | Washer,metallic |
|
- | |||||
| NI | 5303303558 | Strap-chassis Pull |
|
- |
