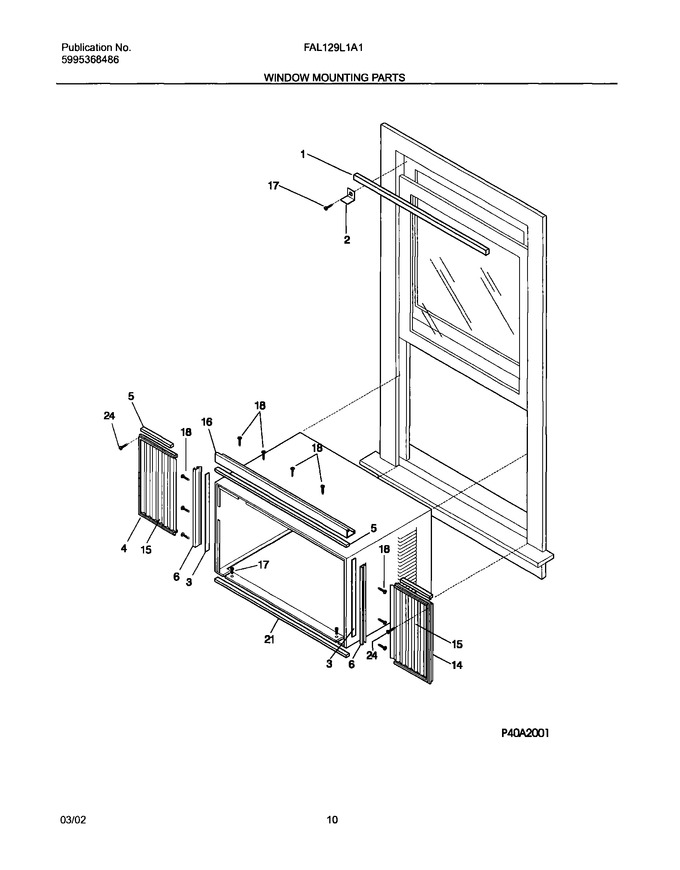

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal,window Stuffer		Appelez-nous	-
2	5303211056		Bracket-sash Lock		Appelez-nous	-
3	5303276728		Seal,retainer		Appelez-nous	-
4	5304414122		Extension,sliding Frame ,lh ,w/closure Panel		Appelez-nous	-
5	5303207200		Seal,rail ,top		Appelez-nous	-
6	5304414107		Retainer,accordian		Appelez-nous	-
14	5304414123		Extension,sliding Frame ,rh ,w/closure Panel		Appelez-nous	-
15	309645601		Closure,accordian Type ,lh/rh ,window Mount				$ 186.22
16	5304414102		Rail,support ,top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5304416289		Screw,ph Truss Head ,8-18ab X 0.47		Appelez-nous	-
21	5314949603		Seal,sleeve/chassis ,bottom		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
NI	5303301572		Nut,speed ,no.8		Appelez-nous	-
NI	309313304		Window Mounting Kit		Appelez-nous	-
NI	309313205		Mounting Support Kit		Appelez-nous	-
NI	5304426447		Hardware Kit,window Mount		Appelez-nous	-
