SELECT A DIAGRAM

01 - Cover

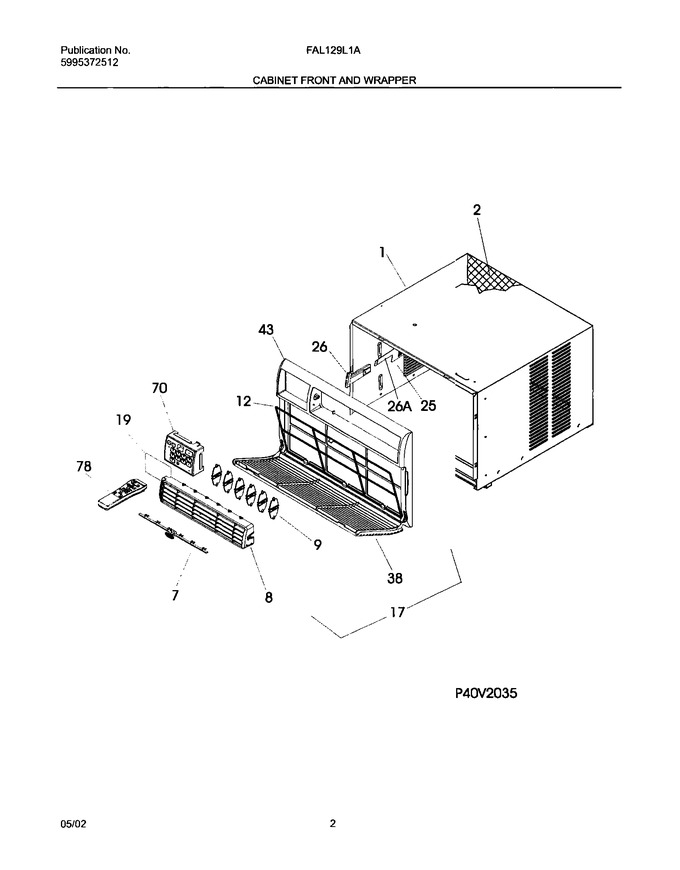

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609212		Cabinet,sleeve ,complete Assy		Appelez-nous	-
2	5304414101		Grille,rear		Appelez-nous	-
7	309638601		Link		Appelez-nous	-
8	309639701		Louver,horizontal		Appelez-nous	-
8	309640402		Louver Assy,horizontal ,incl-7,8,9		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343502		Filter-air,8.32 X 22.40				$ 29.82
17	309640302		Front Assembly,cabinet ,7-8-9-12-38-43				$ 137.97
19	309340903		Overlay,frigidaire		Appelez-nous	-
25	309328602		Door,fresh Air Vent		Appelez-nous	-
26	309639401		Handle,vent Door		Appelez-nous	-
38	309639601		Panel,cabinet Front				$ 86.21
43	309639501		Frame,cabinet Front				$ 108.62
70	309342301		Enclosure,elec Control Mt				$ 18.38
78	309342604		Remote Control,transmitter ,with Batteries		Appelez-nous	-
26A	309330201		Detent-vent				$ 26.30
NI	5304402119		Seal-tube		Appelez-nous	-
NI	5314949603		Seal,sleeve/chassis ,bottom		Appelez-nous	-
