SELECT A DIAGRAM

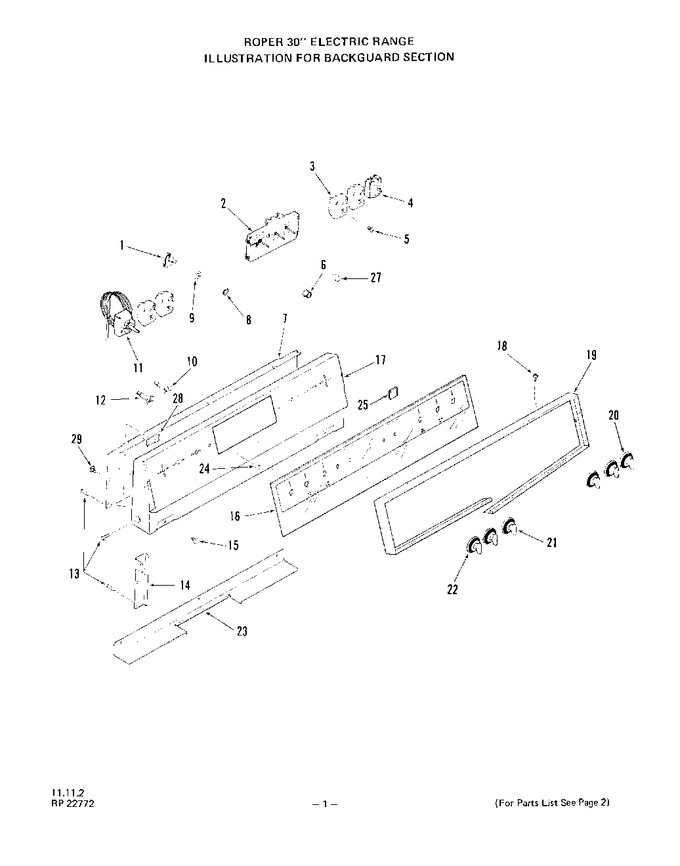

01 - Backguard


02 - Main Top


03 - Body


04 - Oven Door


05 - Section


06 - Rotisserie , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	298794		Push Switch-oven Light		Appelez-nous	-
2	322305		Clock W/1 Hr. Timer		Appelez-nous	-
3	320945		Infinite Control (lt. Front, Rt. Rear)		Appelez-nous	-
3	5500-200		Infinite Control (rt. Front, Lt. Rear)   (Replaces: 320946)			Immediately	$ 54.85
4	320942		Selector Switch		Appelez-nous	-
5	78565		Screw 8-32x3/16``		Appelez-nous	-
6	294810		Knob-clock (minute Timer)		Appelez-nous	-
7	320767		Wire Cover-backguard		Appelez-nous	-
8	109883		Nut-trim 3/8-27		Appelez-nous	-
9	236129		Lock Nut		Appelez-nous	-
10	288247		Indicator Light-surface		Appelez-nous	-
11	320937		Oven Thermostat		Appelez-nous	-
12	288970		Indicator Light-oven		Appelez-nous	-
13	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
14	310601		Support-backguard (right)		Appelez-nous	-
14	310602		Support-backguard (left)		Appelez-nous	-
15	321337		Screw 10-32x7/16``		Appelez-nous	-
16	322298		Backguard Glass		Appelez-nous	-
17	319967		Crosstie-backguard (almond)		Appelez-nous	-
17	319965		Crosstie-backguard (avocado)		Appelez-nous	-
17	319964		Crosstie-backguard (coffee)		Appelez-nous	-
17	319963		Crosstie-backguard (white)		Appelez-nous	-
17	319966		Crosstie-backguard (golden Wheat)		Appelez-nous	-
18	295268		Screw 6-32x3/8``		Appelez-nous	-
19	308007		Bezel-backguard		Appelez-nous	-
20	321052		Knob-selector Switch		Appelez-nous	-
21	321051		Knob-infinite Control (4 Required)		Appelez-nous	-
22	321053		Knob-oven Thermostat		Appelez-nous	-
23	315434		Bottom-wire Cover		Appelez-nous	-
24	233161		Lens-indicator Light (2 Required)		Appelez-nous	-
25	322302		Spacer-backguard Glass (2 Required)		Appelez-nous	-
27	109225		Knob-clock (start & Stop Time) (2)		Appelez-nous	-
28	108069		Speed Nut 10 - 32		Appelez-nous	-
29	70588		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
