SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

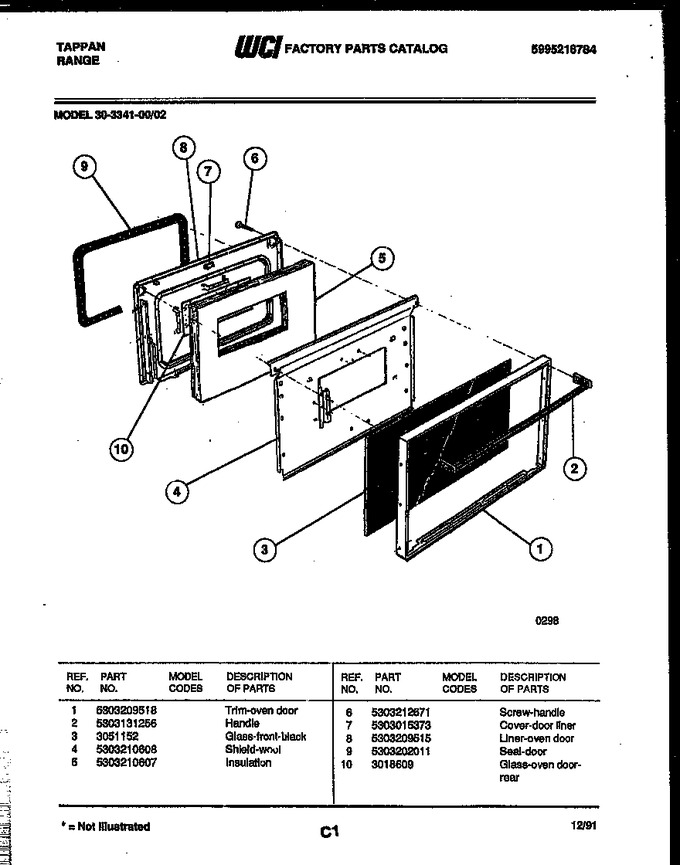

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 5303131256 | Handle |
|
- | |||||
| 3 | 3051152 | Glass-front, Black |
|
- | |||||
| 4 | 5303210608 | Shield-wool |
|
- | |||||
| 5 | 5303210607 | Insulation |
|
- | |||||
| 6 | 5303212671 | Screw Handle |
|
- | |||||
| 7 | 5303015373 | Cover-door Liner |
|
- | |||||
| 8 | 5303209515 | Liner-oven Door |
|
- | |||||
| 9 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 10 | 3018609 | Glass-oven Door (rear) |
|
- |
